To ensure optimal performance and a long service life, it is important to operate your S1 pump within the correct water temperature range.
Temperature classes for S1-200
The S1-200 is manufactured with different pump ends to handle various water temperature ranges. These versions are called temperature classes:
| Temperature Class | Range in Celsius | Range in Fahrenheit |
| 2 | +20 – +30 °C | 68 – 86 °F |
| 3 | +30 – +40 °C | 86 – 104 °F |
| 4 | +40 – +50 °C | 104 – 122 °F |
The pumps have a tolerance range of ± 2 °C [± 3.6 °F] regarding the respective temperature ranges.

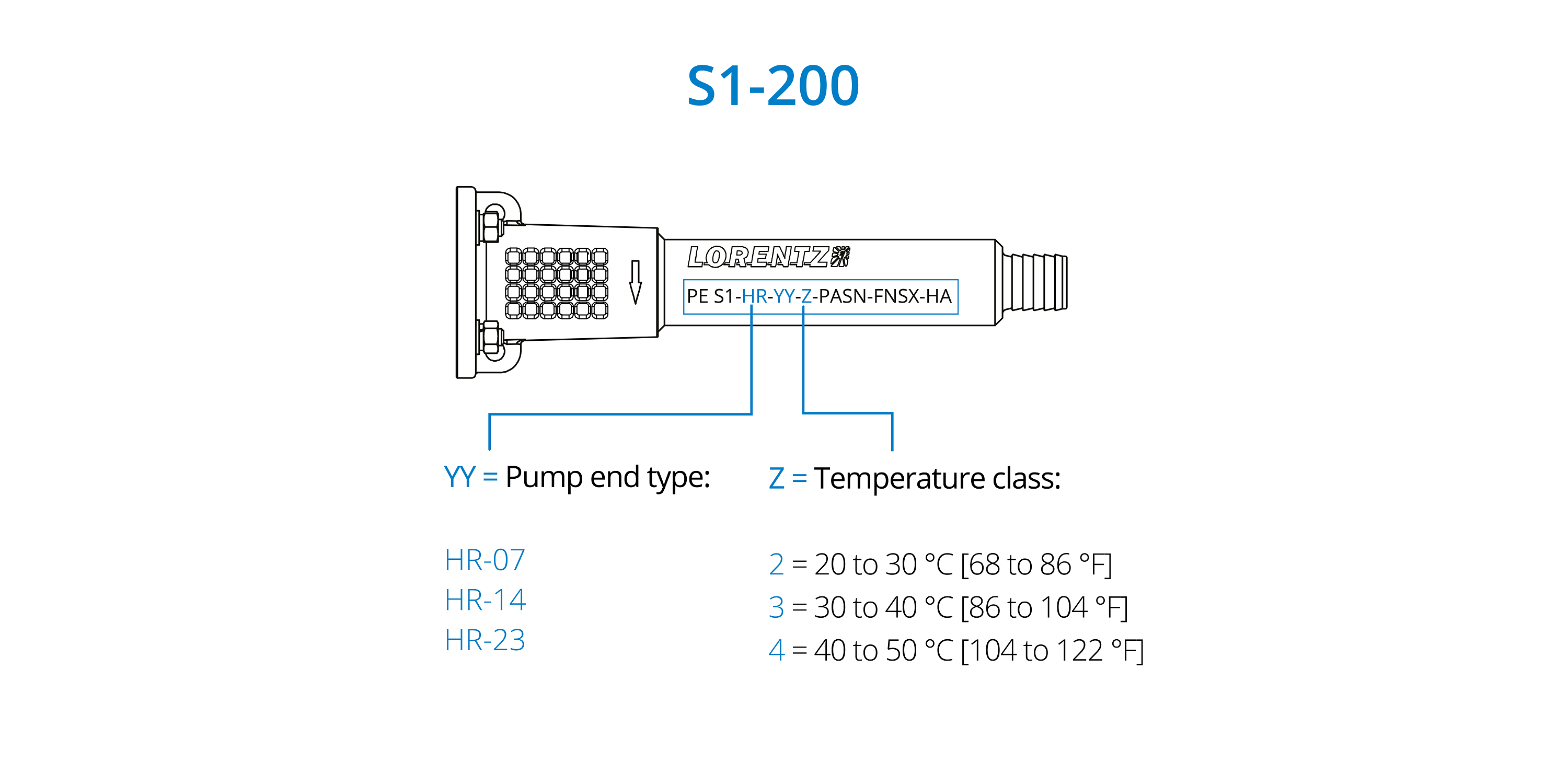

You can find the temperature class on your pump here:
fullscreen
Maximum water temperature for S1-700
The S1-700 uses centrifugal pump models CST-2-10 and CST-4-6. These pumps are suitable for water temperatures up to 50 °C [122 °F].
Unlike the S1-200, the S1-700 does not have temperature classes, as the same pump models are used for the entire temperature range.
