system 1
pump system: PSk2-7 C-SJ17-9
flow rate: 0.4 m³/day
total dynamic head (TDH): 30 m
solar generator: 10.6 kWp
system 2
pump system: PS2-1800 HR-14
flow rate: 1 m³/day
total dynamic head (TDH): 115 m
solar generator: 1.6 kWp
system 3
pump system: PSk2-9 C-SJ8-44
flow rate: 80 m³/day
total dynamic head (TDH): 130 m
solar generator: 14.6 kWp
system 4
pump system: PSk2-9 C-SJ8-44
flow rate: 80 m³/day
total dynamic head (TDH): 130 m
solar generator: 14.6 kWp
Mvepi Jue Village Arua District
Uganda
Davis & Shirtliff Uganda
January 2018
Project . The project was about supply of items and motorisation of Juwe borehole in imvepi refugee settlement, Arua district.
Reference Number: WHH_2017/BH-M/UGA1050/001

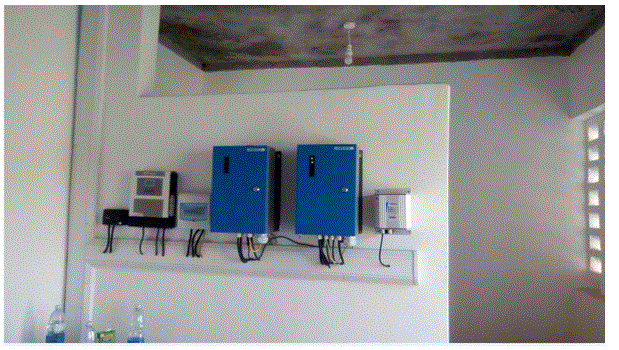

The photovoltaic solar powered pump system consisted three parts namely; the pump, the controller, and solar panels. A 20 kva generator was supplied and installed
The pumps were of Lorentz make PSK2-7 CS-J17-9-D powered by SOLAR WORLD SOLAR MODULES 280W
The pump supplies water from a borehole to a water tank erected on water tank stand. The project works including supply and installations done by Davis & Shirtliff to quality standards as agreed up by the relevant stakeholders.
