pump system: PSk2-21 C-SJ17-2
flow rate: 150 m³/day
total dynamic head (TDH): 180 m
solar generator: 52.8 kWp
Sepalau
Guatemala
Guatemala Solar
June 2023

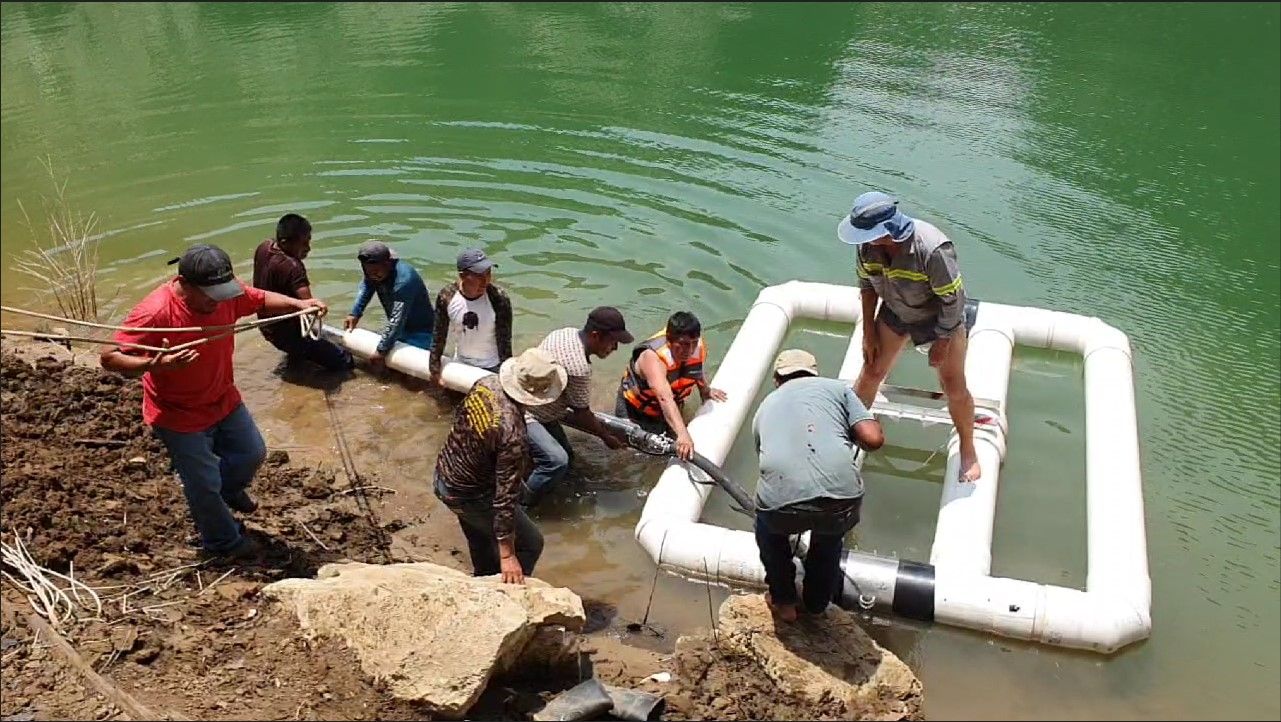

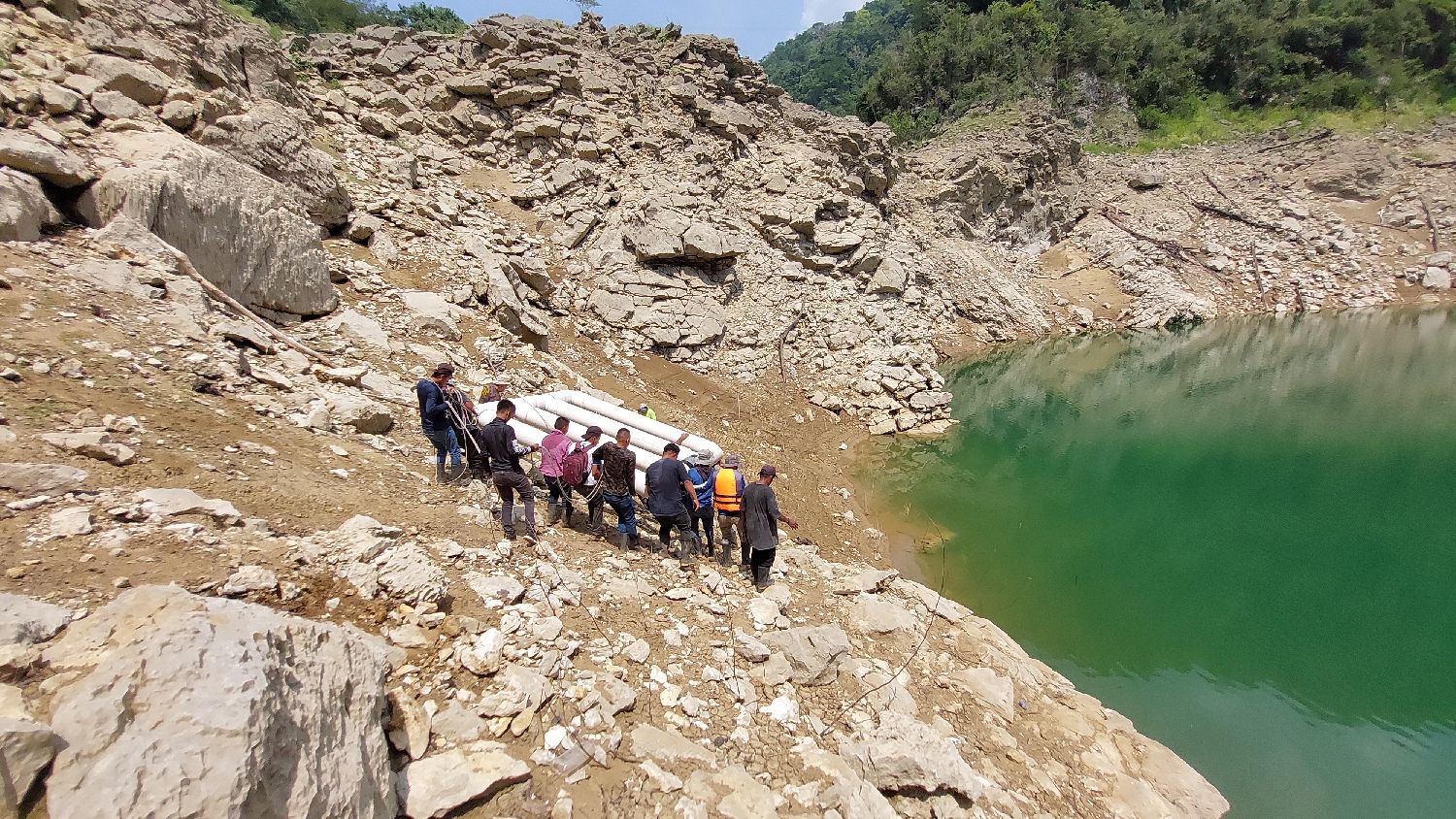

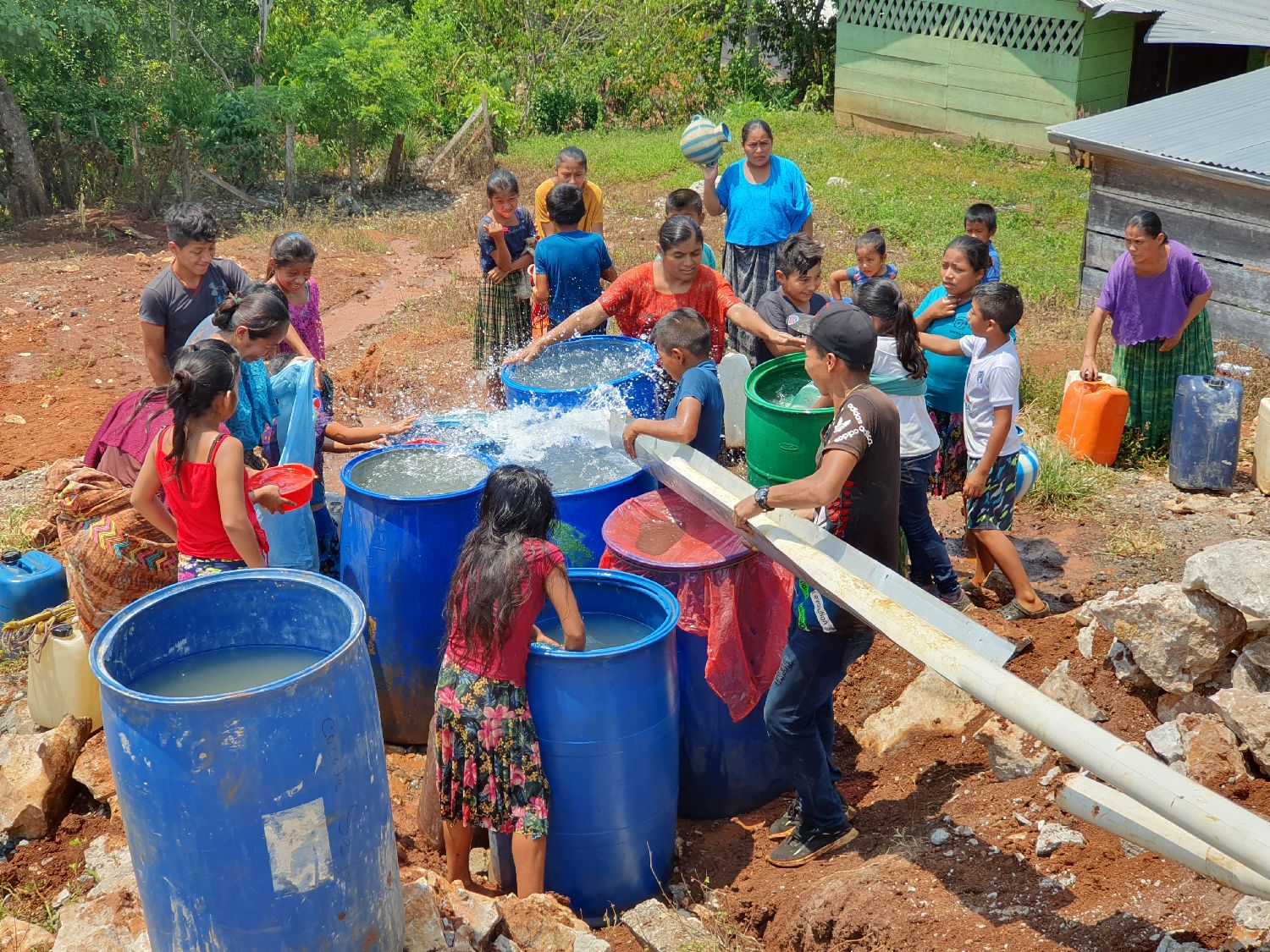

Drinking water system, water source lake, pump installed on raft, 100m flexible hose 2" 300psi to rigid pipe of 3"

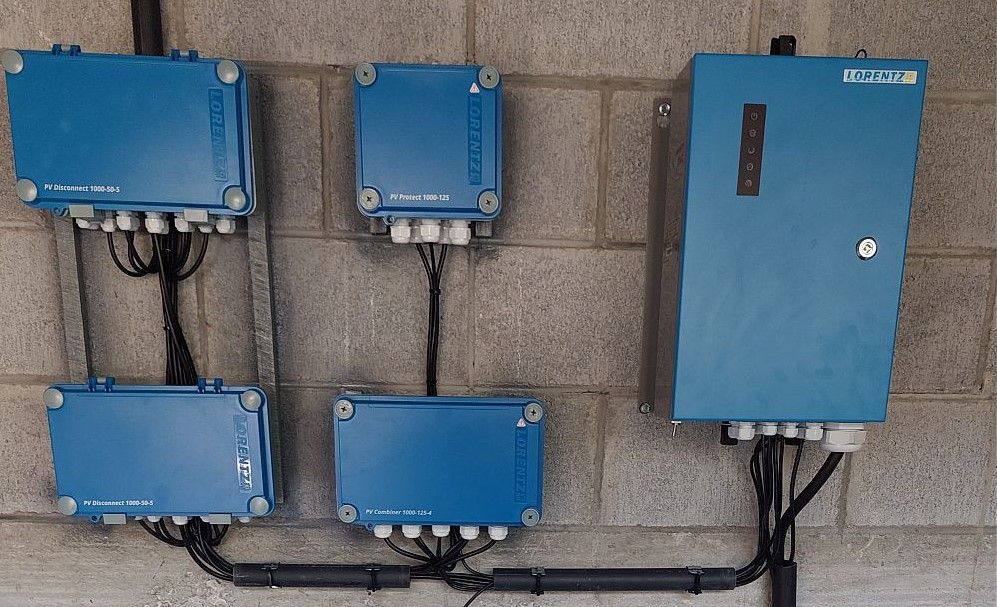

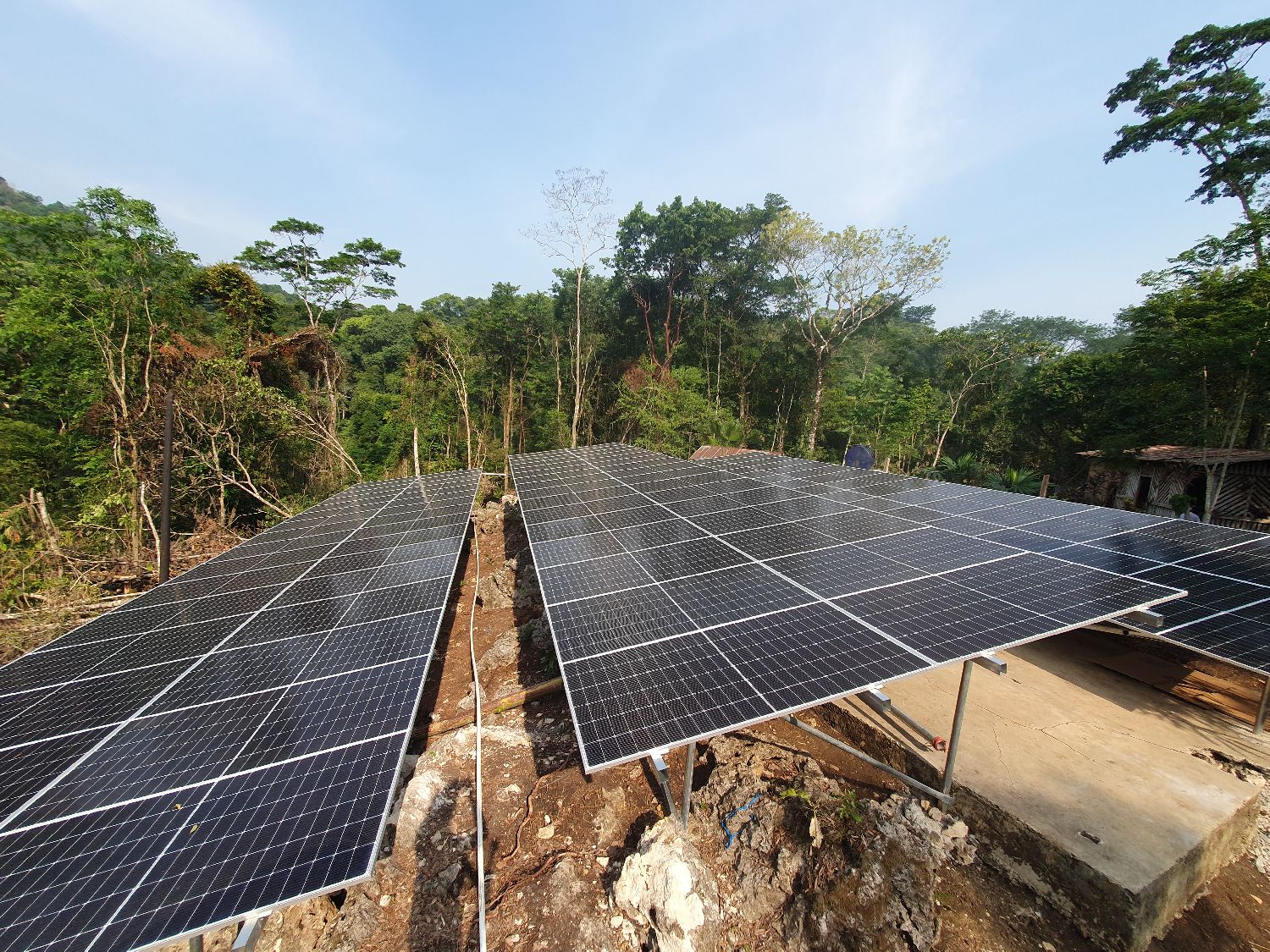

Solar arrey and controller distance from pump 225m, cable gauge #2 aluminium. Oversized solar generator 54kW instead of 35.2kWp calculated in Compass
