pump system: PS2-1800 CS-F12-2
flow rate: 77 m³/day
total dynamic head (TDH): 8 m
solar generator: 1.8 kWp
Calapan
Philippines
Sunelec
March 2026
A LORENTZ PS2-1800 CS-F12-2 solar pumping system was installed to provide a reliable and cost-efficient community water supply. Powered by a 1.83 kWp PV array, the system delivers up to 77 m³/day at 6 m head.

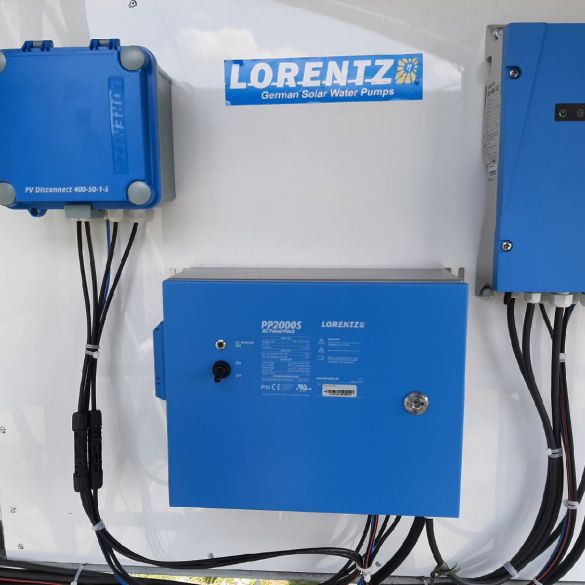

Configured for 24/7 operation, the system integrates a PowerPack and SunSensor to automatically switch between solar and AC supply, ensuring continuous operation. Protection features such as a well probe and tank float switch further enhance system safety and reliability.
This solution reduces operational costs while delivering a sustainable and dependable water supply.
