system 1

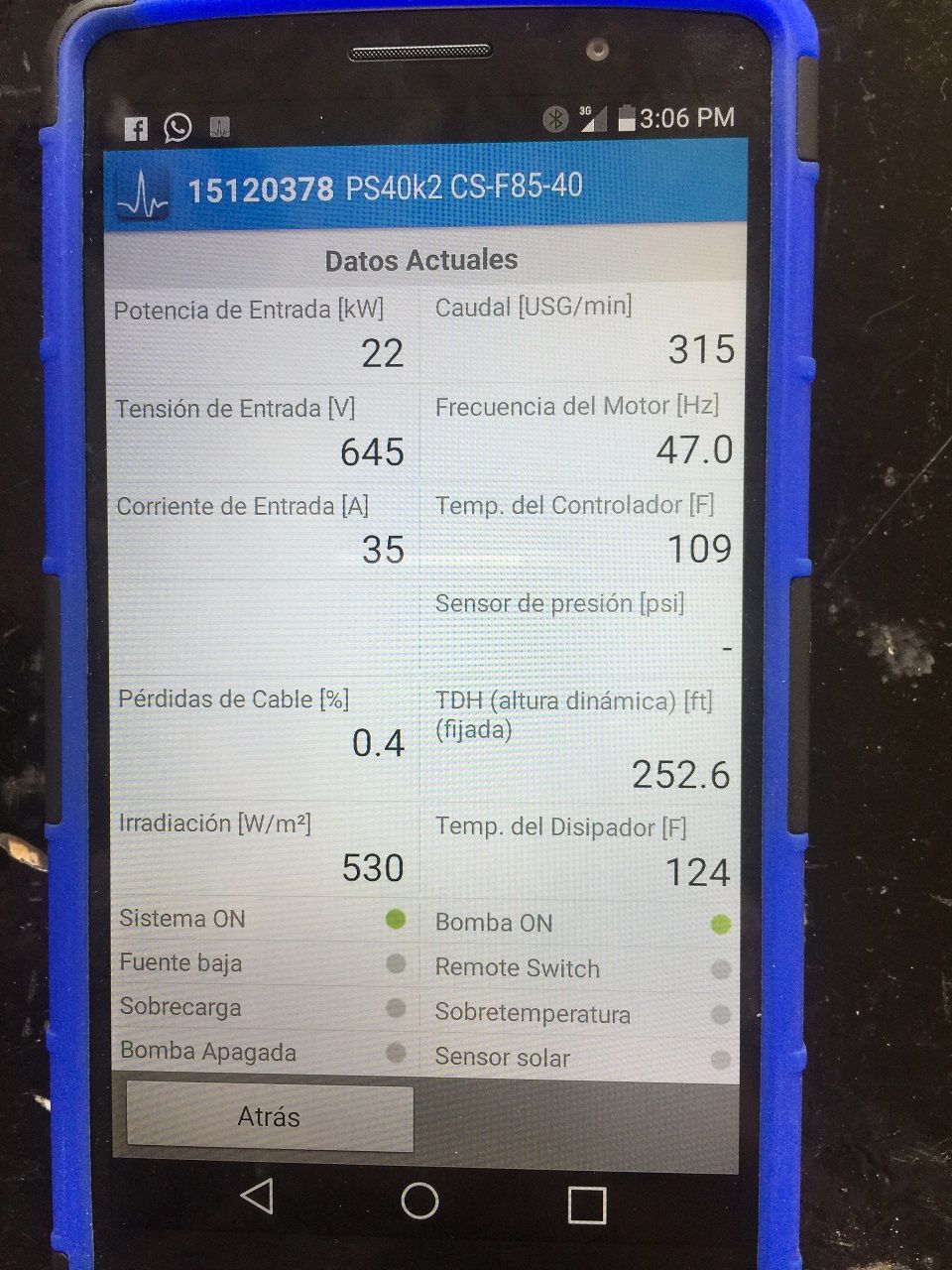

pump system: PS40k2 CS-F85-40
flow rate: 630 m³/day
total dynamic head (TDH): 80 m

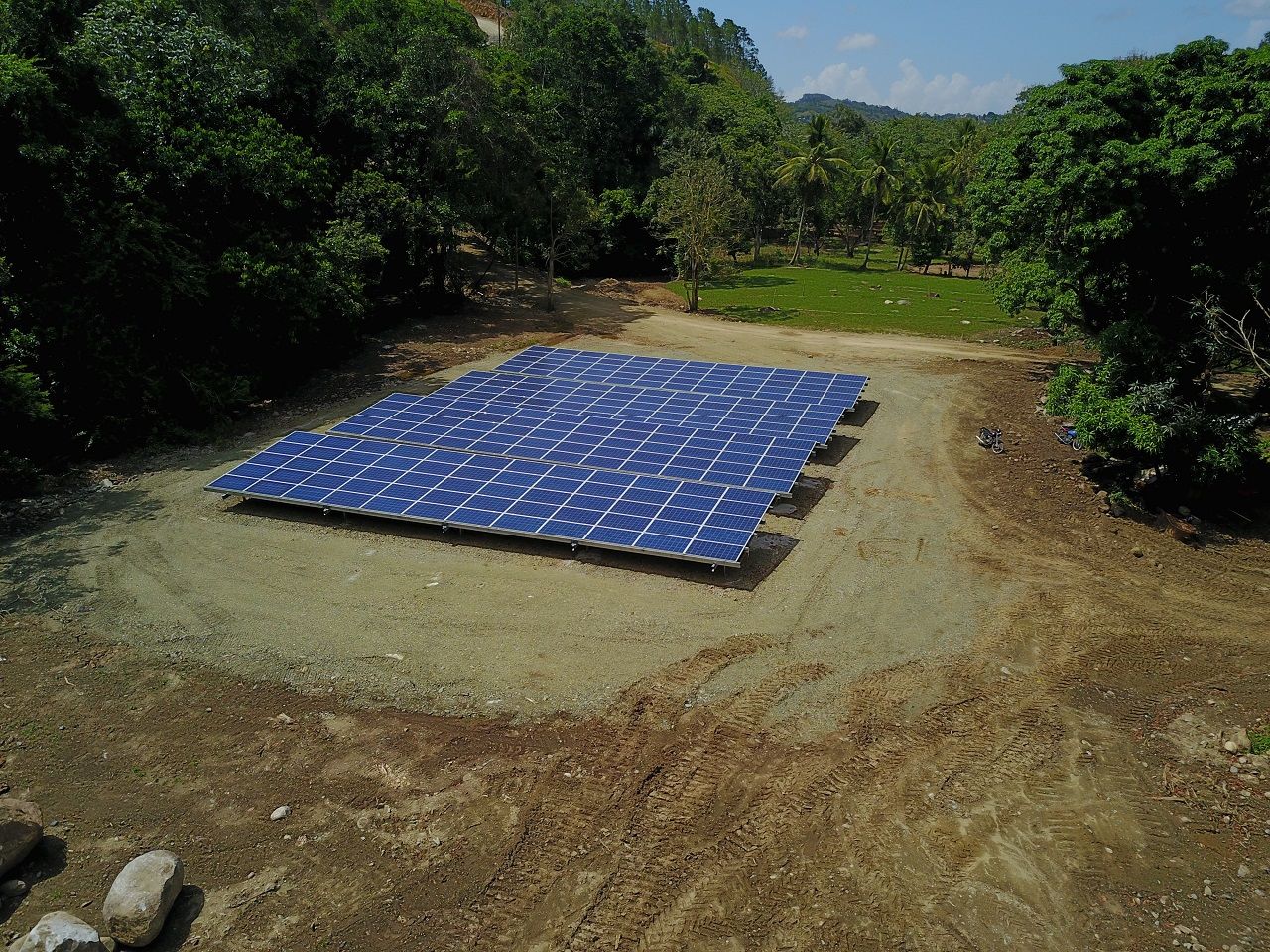

solar generator: 64.8 kWp
system 2
pump system: PS150 C-SJ5-8
flow rate: 33 m³/day
total dynamic head (TDH): 2 m
solar generator: 250 Wp
system 3
pump system: PS2-150 C-SJ5-8
flow rate: 14 m³/day
total dynamic head (TDH): 15 m
solar generator: 500 Wp
system 4
pump system: PS2-150 C-SJ5-8
flow rate: 14 m³/day
total dynamic head (TDH): 15 m
solar generator: 500 Wp
Estancita, Jarabacoa
Dominican Republic
RAAS SOLAR
August 2017

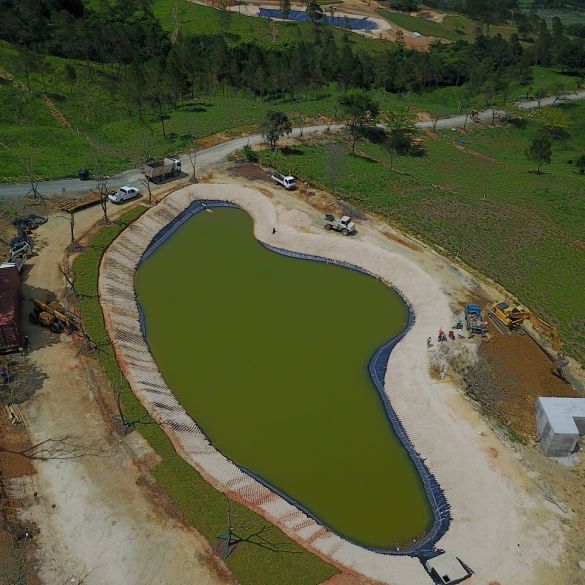

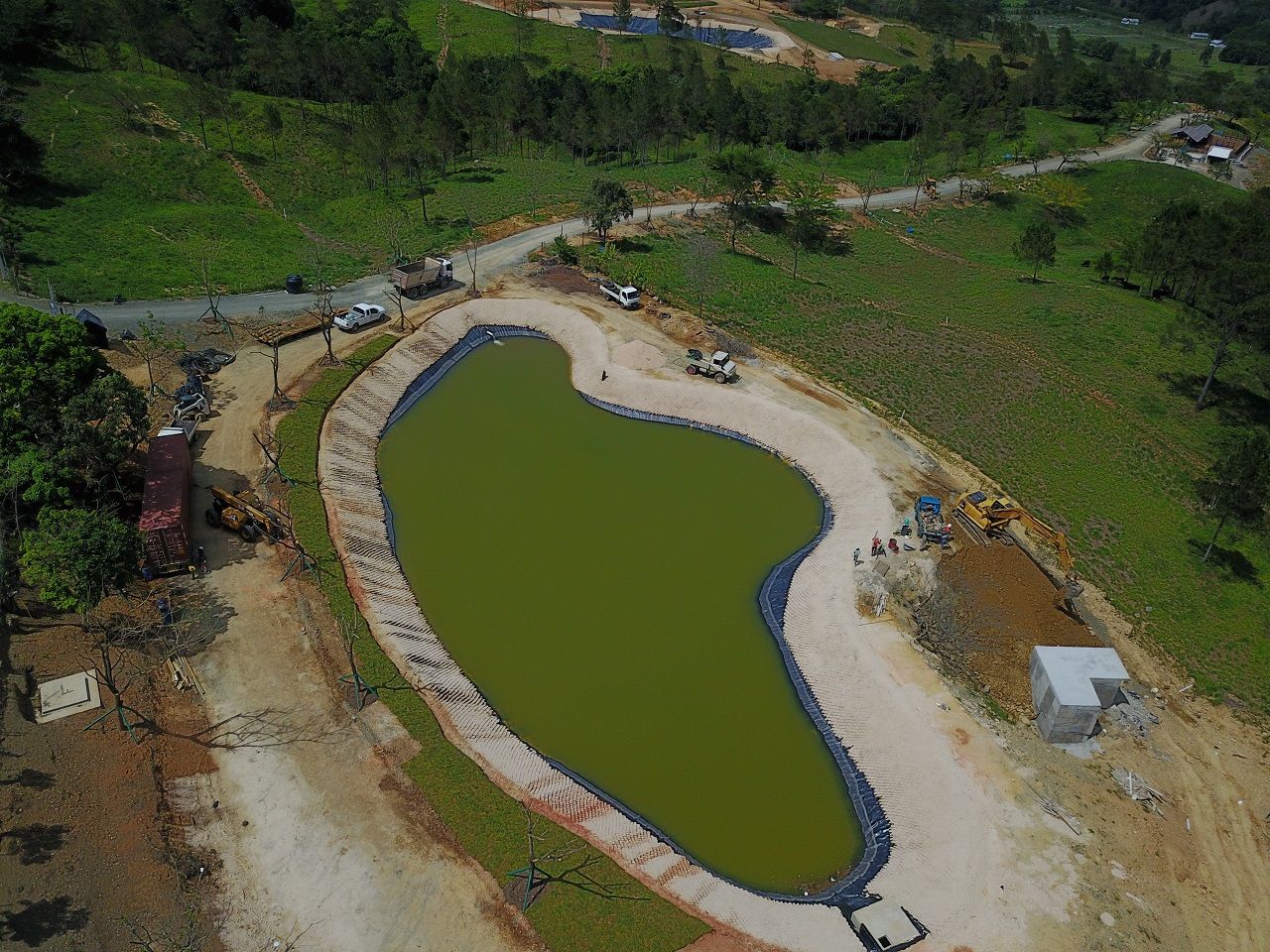

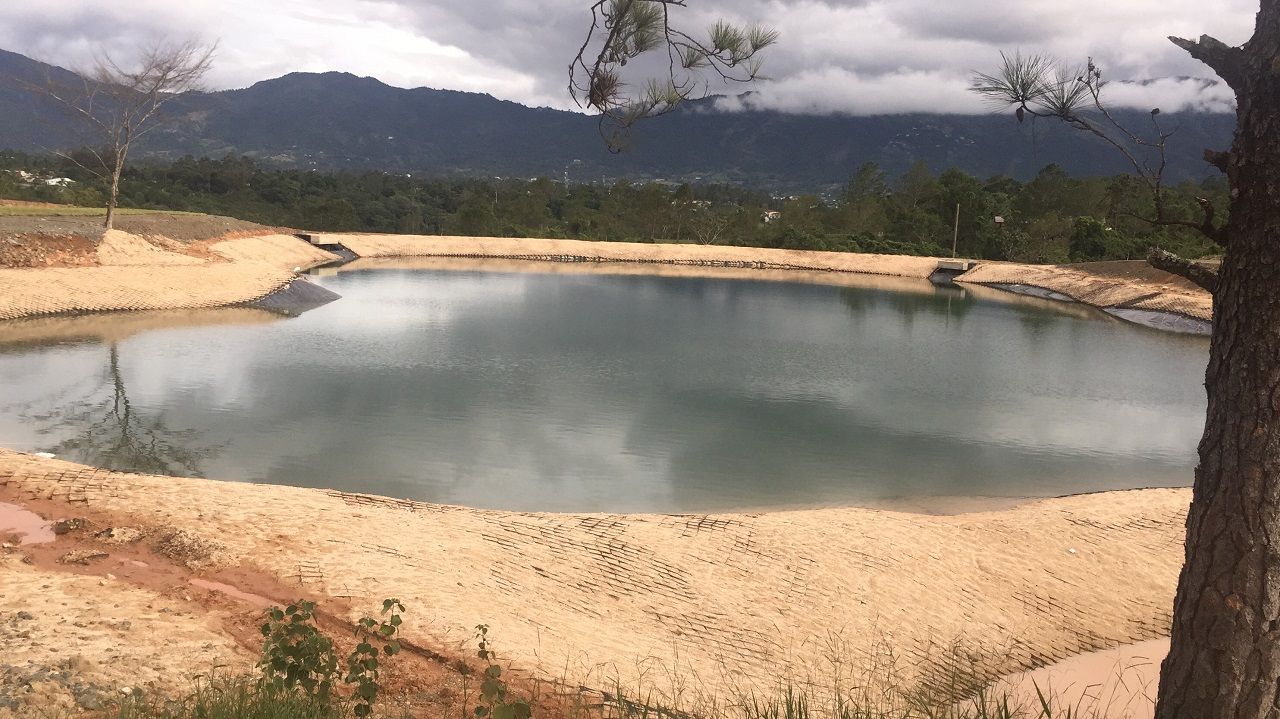

This project consists of filling two artificial lagoons from the Yaque del Norte River, these lagoons are at different distances and heights. Lagoon 1 has a TDH of 110 PSI and lagoon 2 a TDH of 90PSI, with a flow rate ranging from 300 to 400 gallons per minute, for a daily delivery of more than 200,000 gallons.
