pump system: PSk2-7 CS-F12-9
flow rate: 120 m³/day
total dynamic head (TDH): 77 m

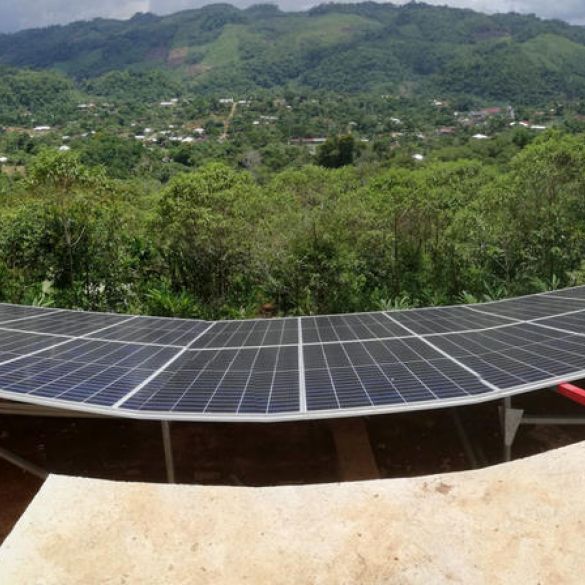

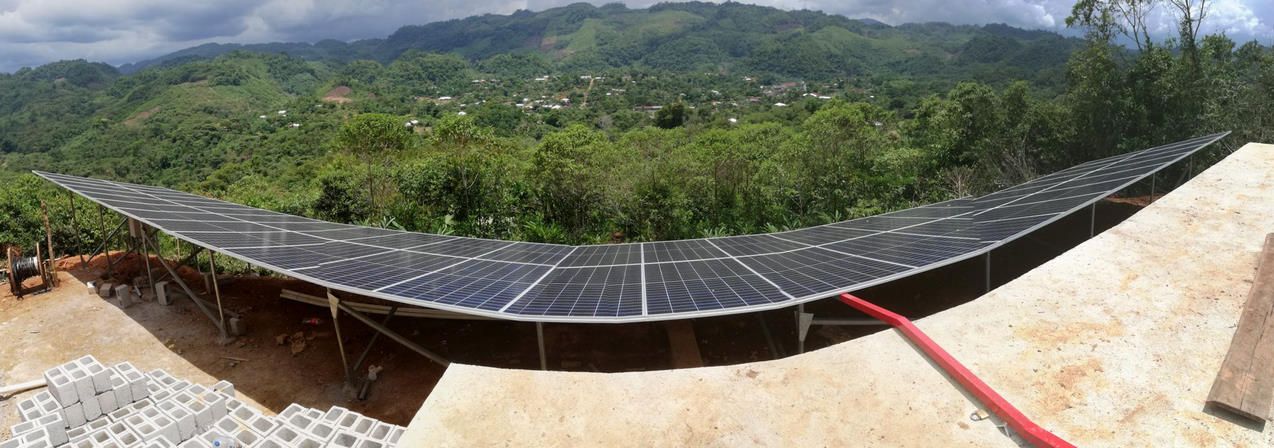

solar generator: 19.9 kWp
Rio Azul
Guatemala
Guatemala Solar
May 2021

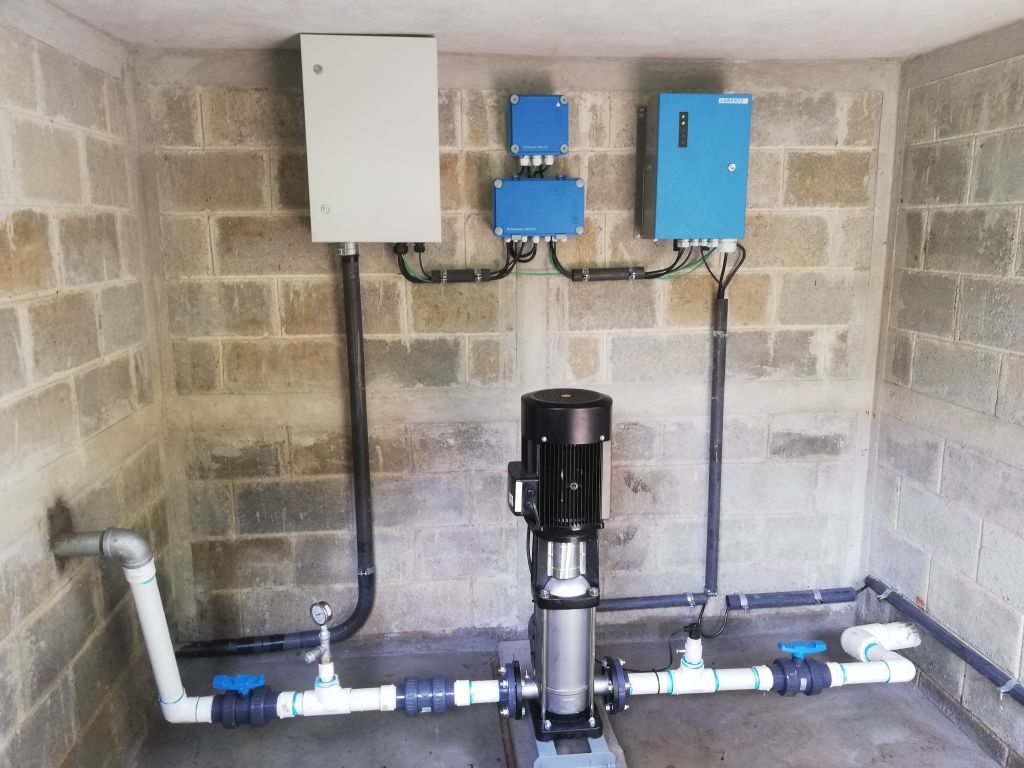

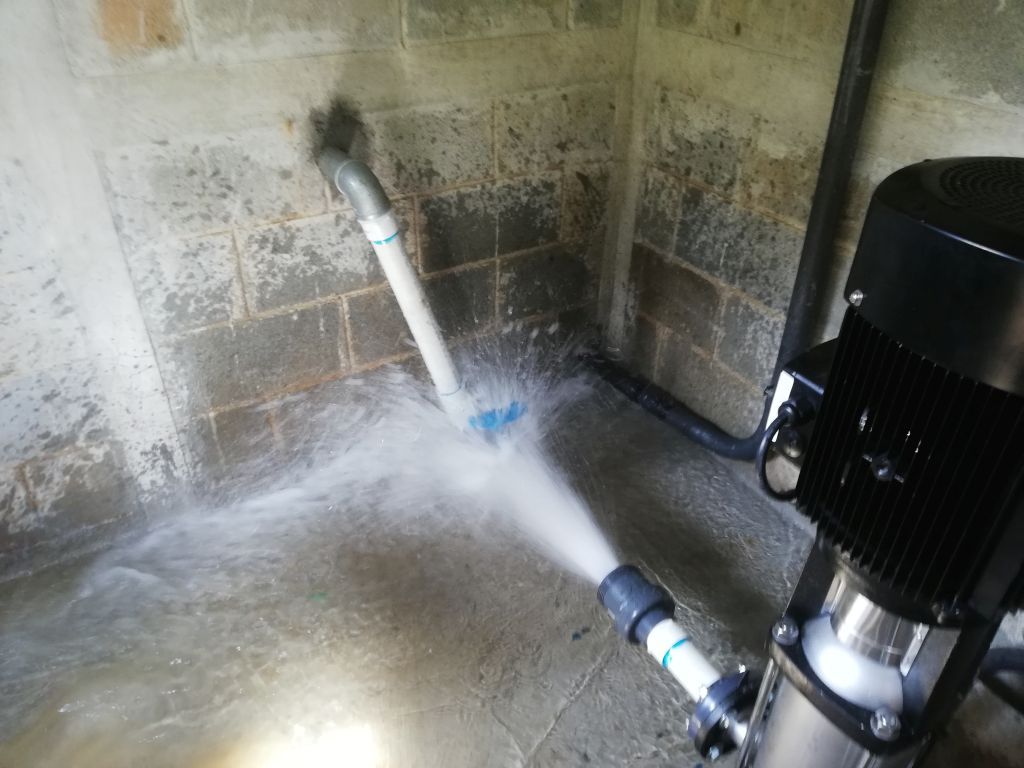

Surface pump, 177 families, Spring Well, Controller installed at Pump site in building, Solar array distance 300m, extra DC switch installed at solar array to be able to turn off power to PV disconnect in case of caseta being flooded, DC lines are Aluminium cables AWG 1/0 transition to copper cable in enclosures, no sun sensor installed,
