pump system: PS2-4000 HRE-32
flow rate: 59 m³/day
total dynamic head (TDH): 60 m

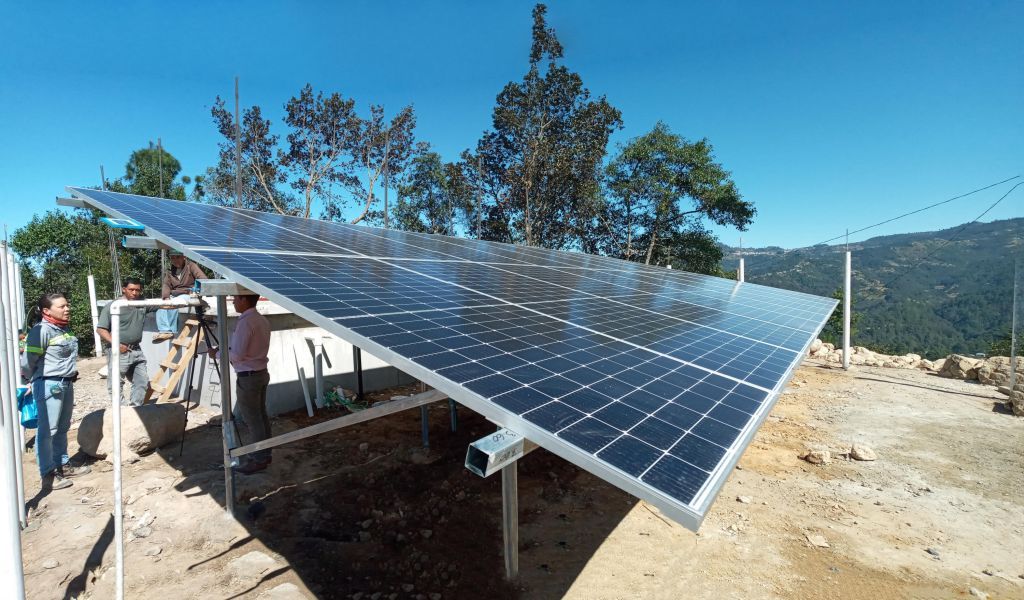

solar generator: 8.2 kWp
Tojchoc Grande
Guatemala
Guatemala Solar
December 2021

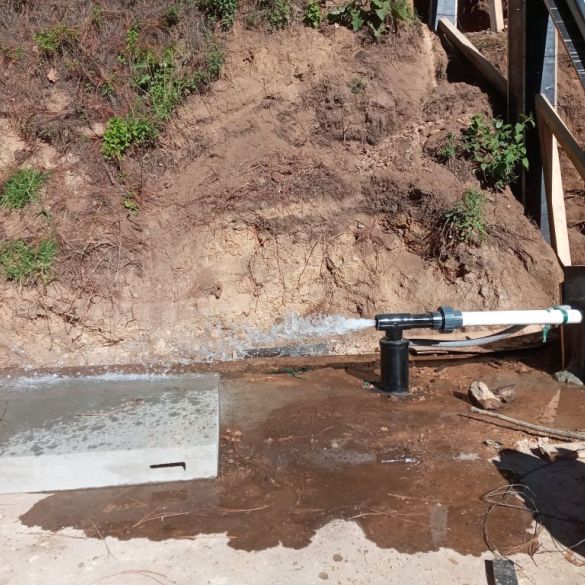

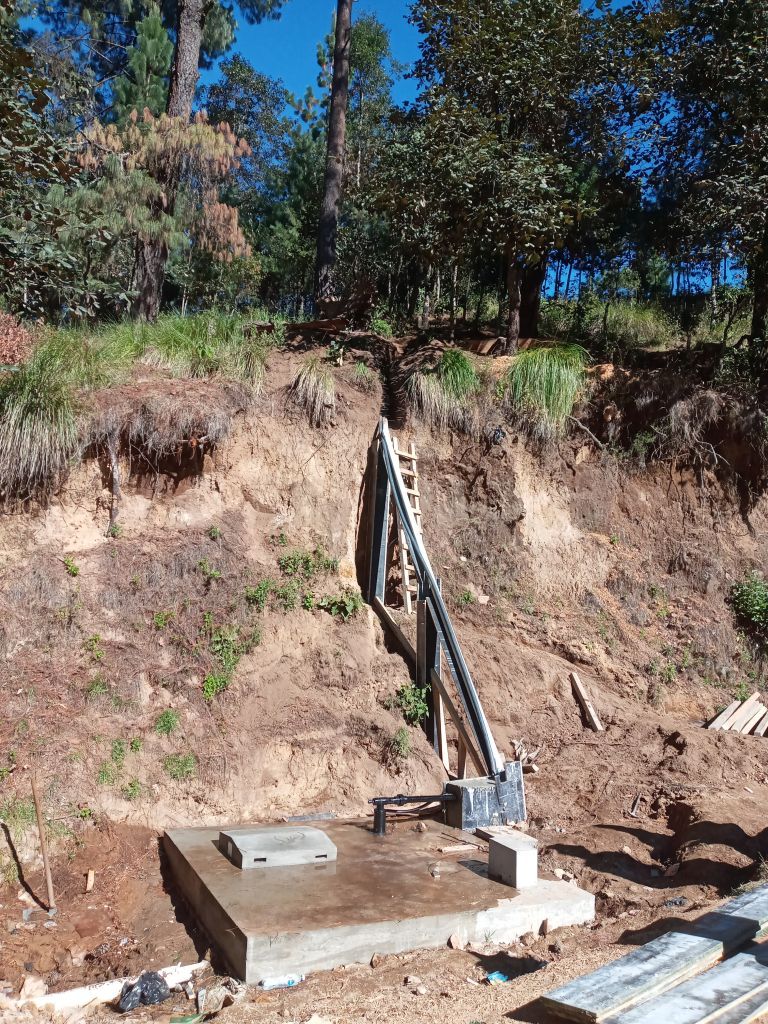

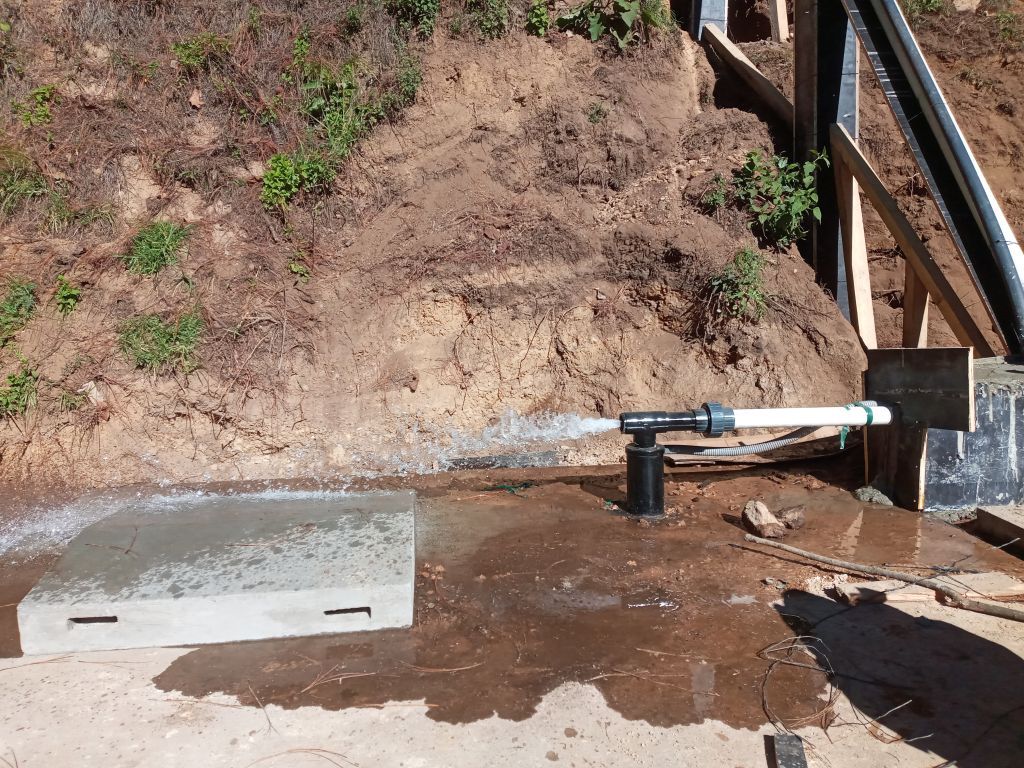

Comunity project, water caption on plane field from about 10 little wells. Pump installation in tank of 2x2x2m3. Distribution tank size 5x7x2m3.
Sensors: Well Probe 2, tank full with Well Probe upside down, sun sensor

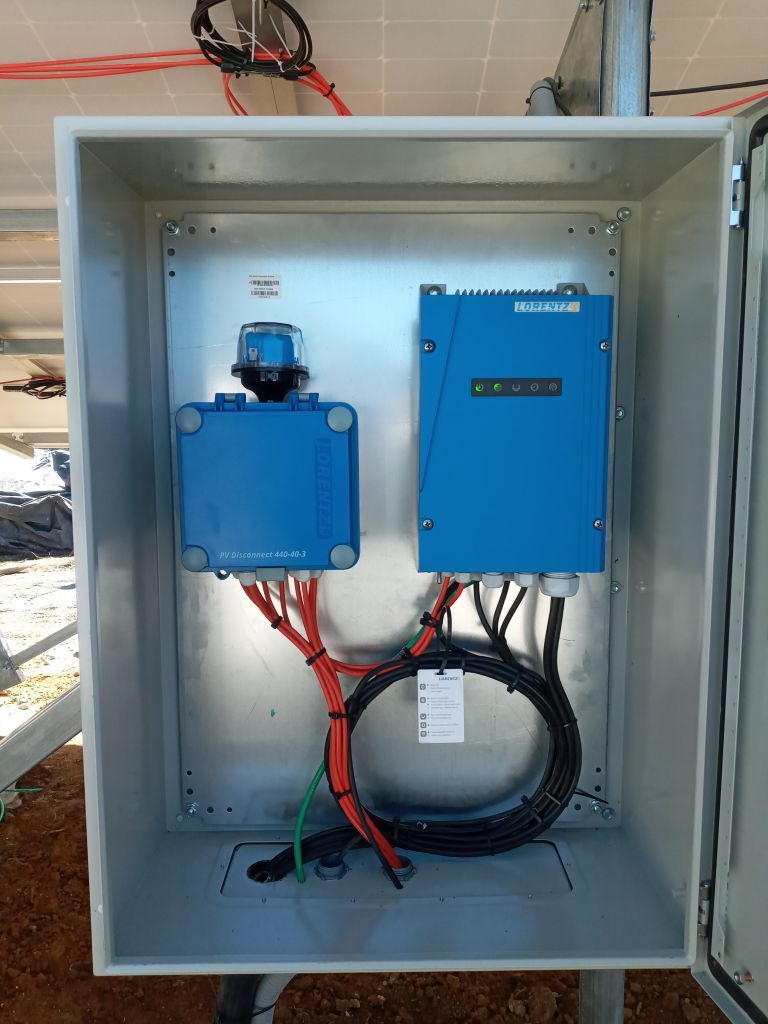

Controller, PV-Disconnect 400-40-3 and MNSPD600 installed in metal closure under the solar array
Cable: Aluminium cable #4 with ground wire, distance to pump 190m. Sensor cable: shielded and twisted CAT6. Conduit is HDPE pipe 1.5"
