pump system: PS2-600 HR-14
flow rate: 10 m³/day
total dynamic head (TDH): 48 m

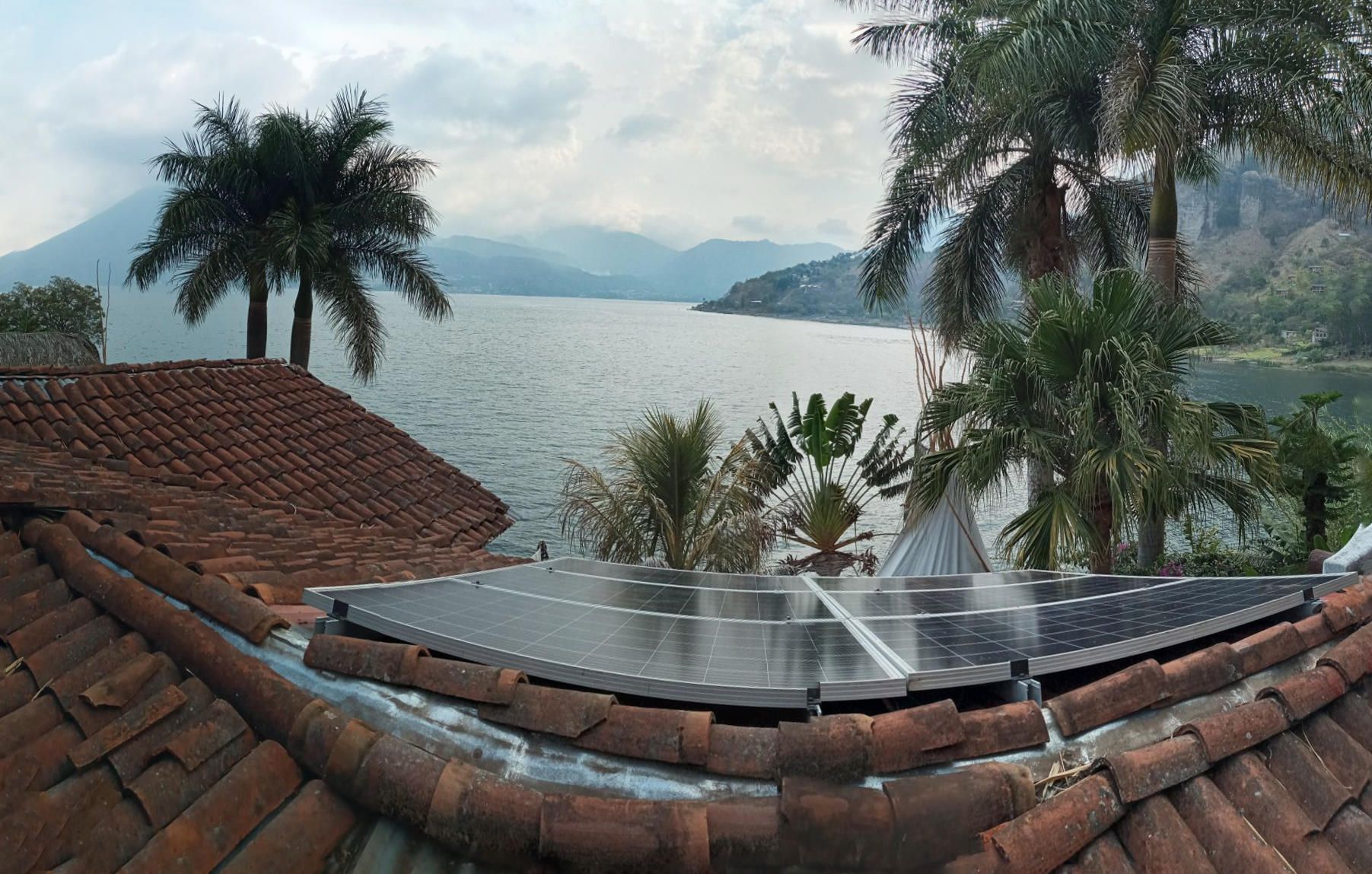

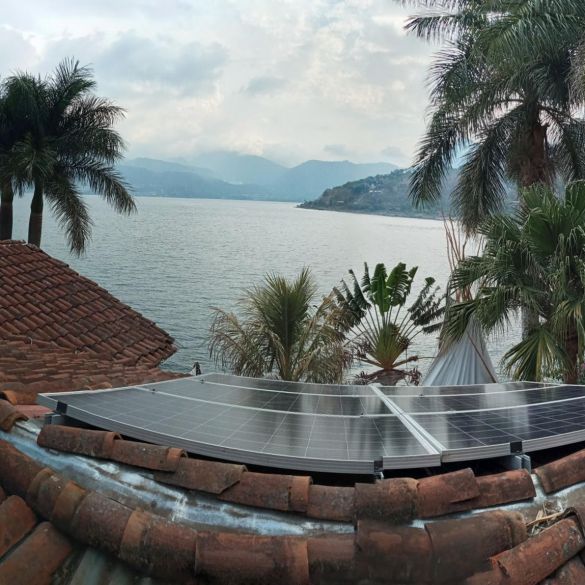

solar generator: 1.7 kWp
San Marcos la Laguna
Guatemala
Guatemala Solar
April 2022

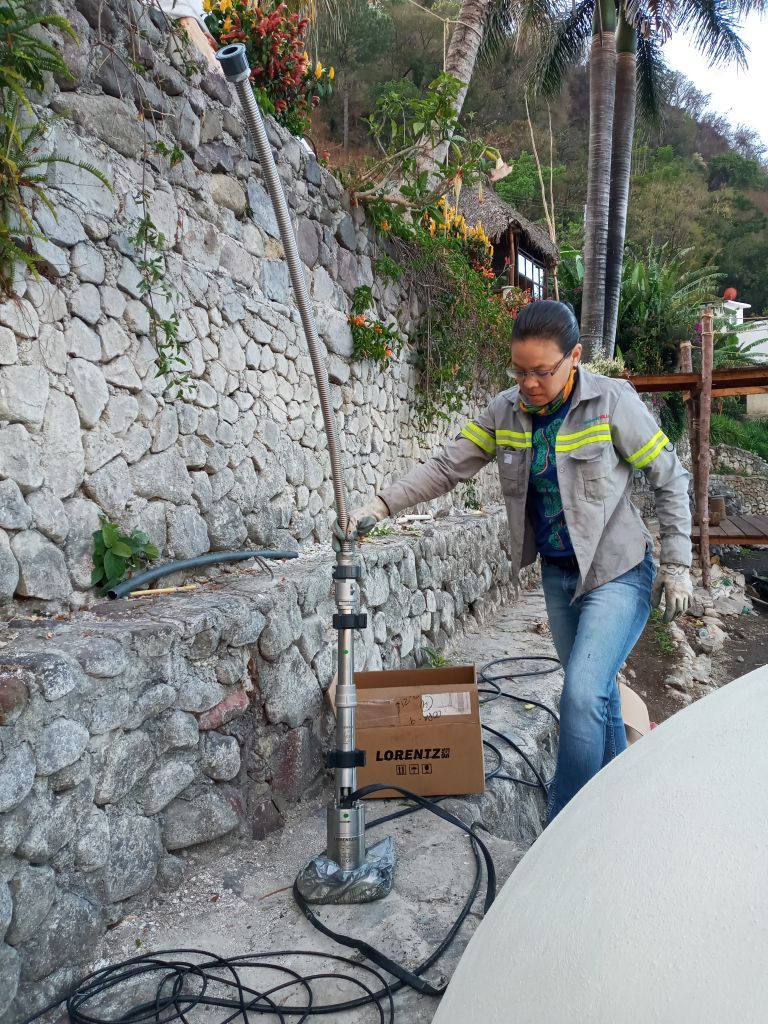

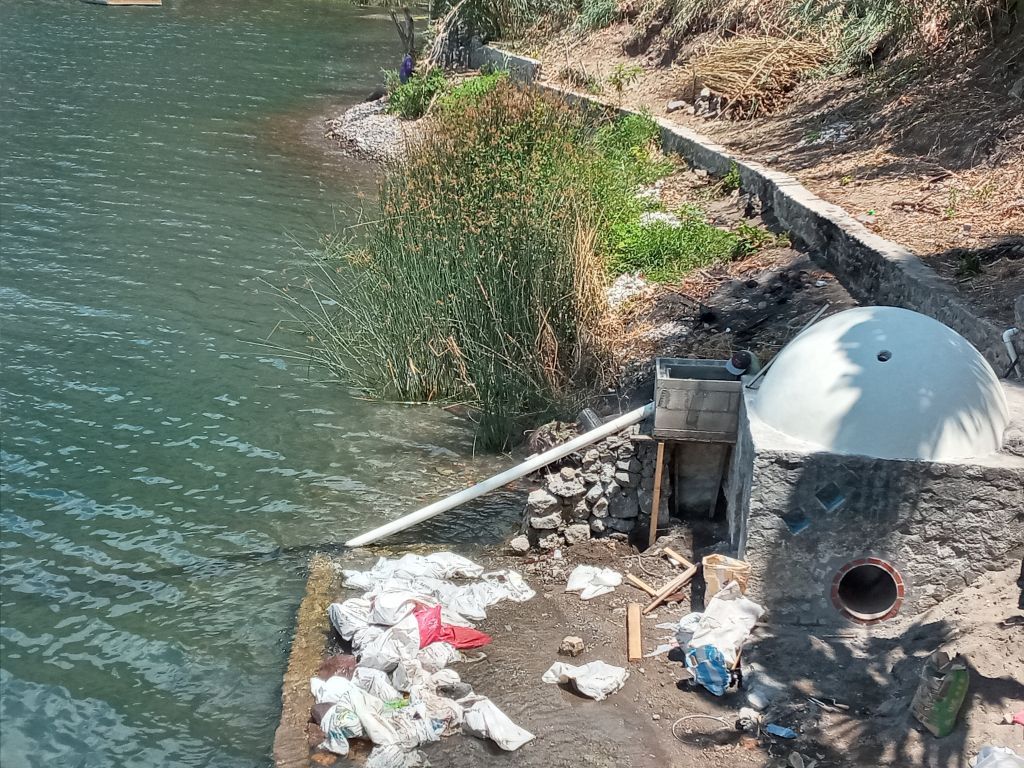

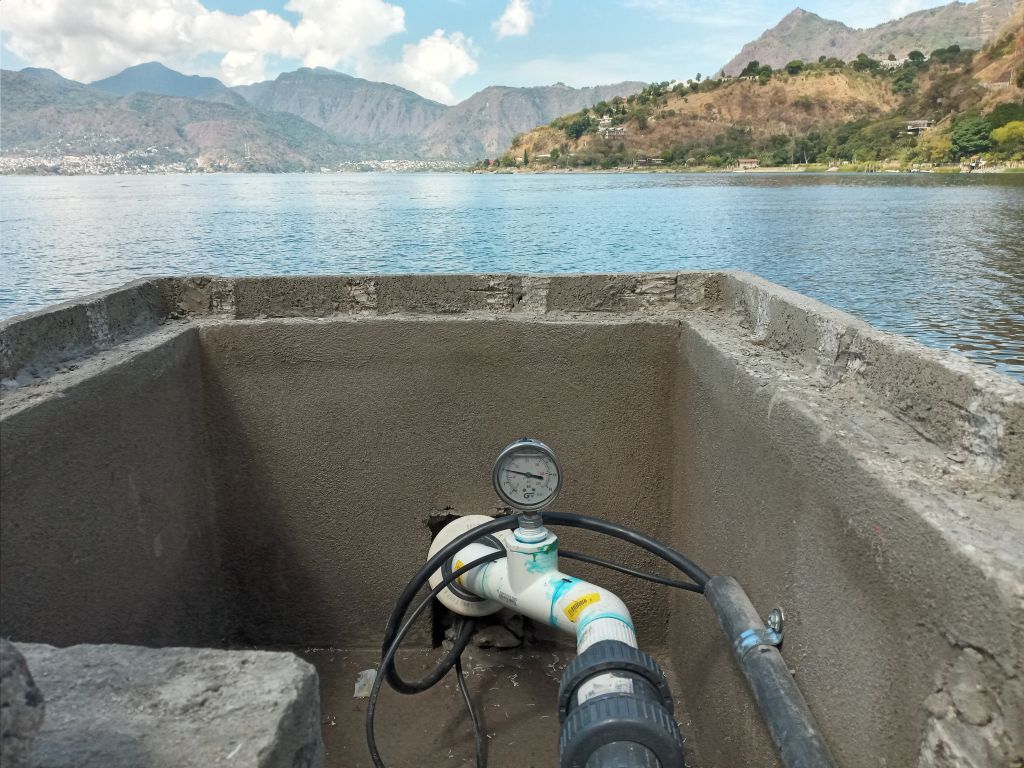

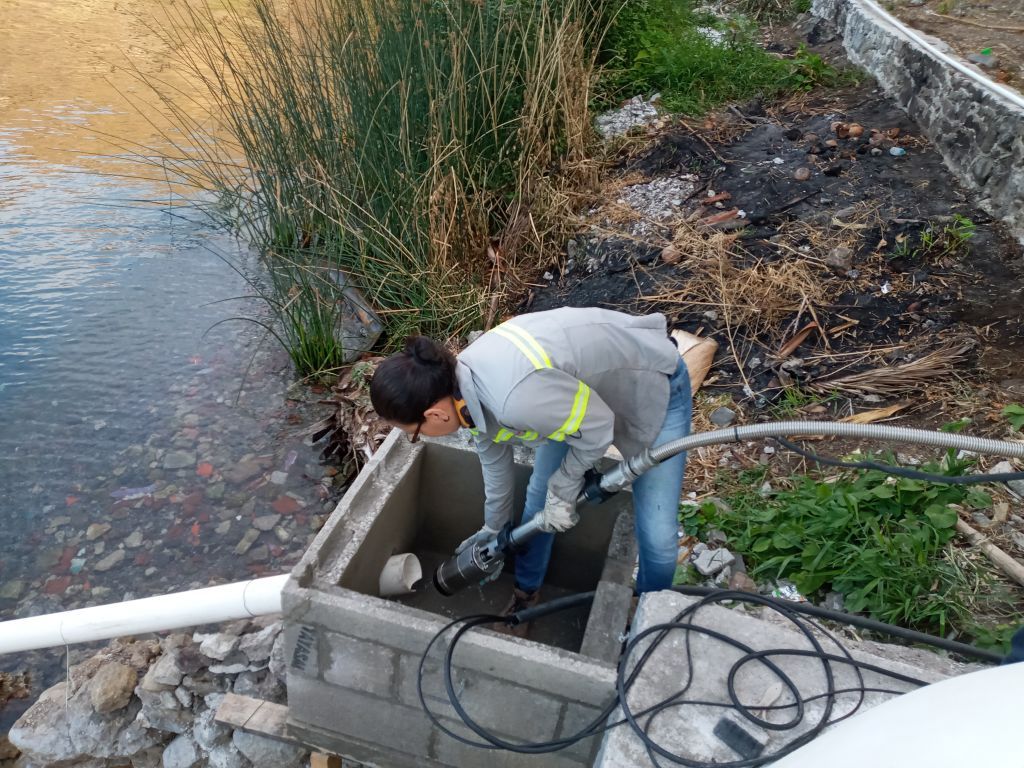

Lake water pumping. For irrigation and drinking water. Well Probe installed at pump on top of pipe to ensure air drainage.
Float switch installed in tank on top of property
