References in Beska, Serbia

systems

system 1
pump system: PS2-4000 C-SJ8-15
flow rate: 120 m³/day
total dynamic head (TDH): 40 m

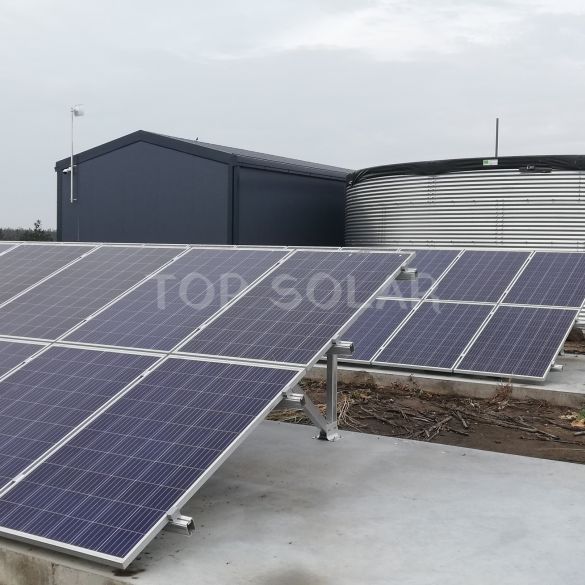

solar generator: 6.8 kWp

system 2

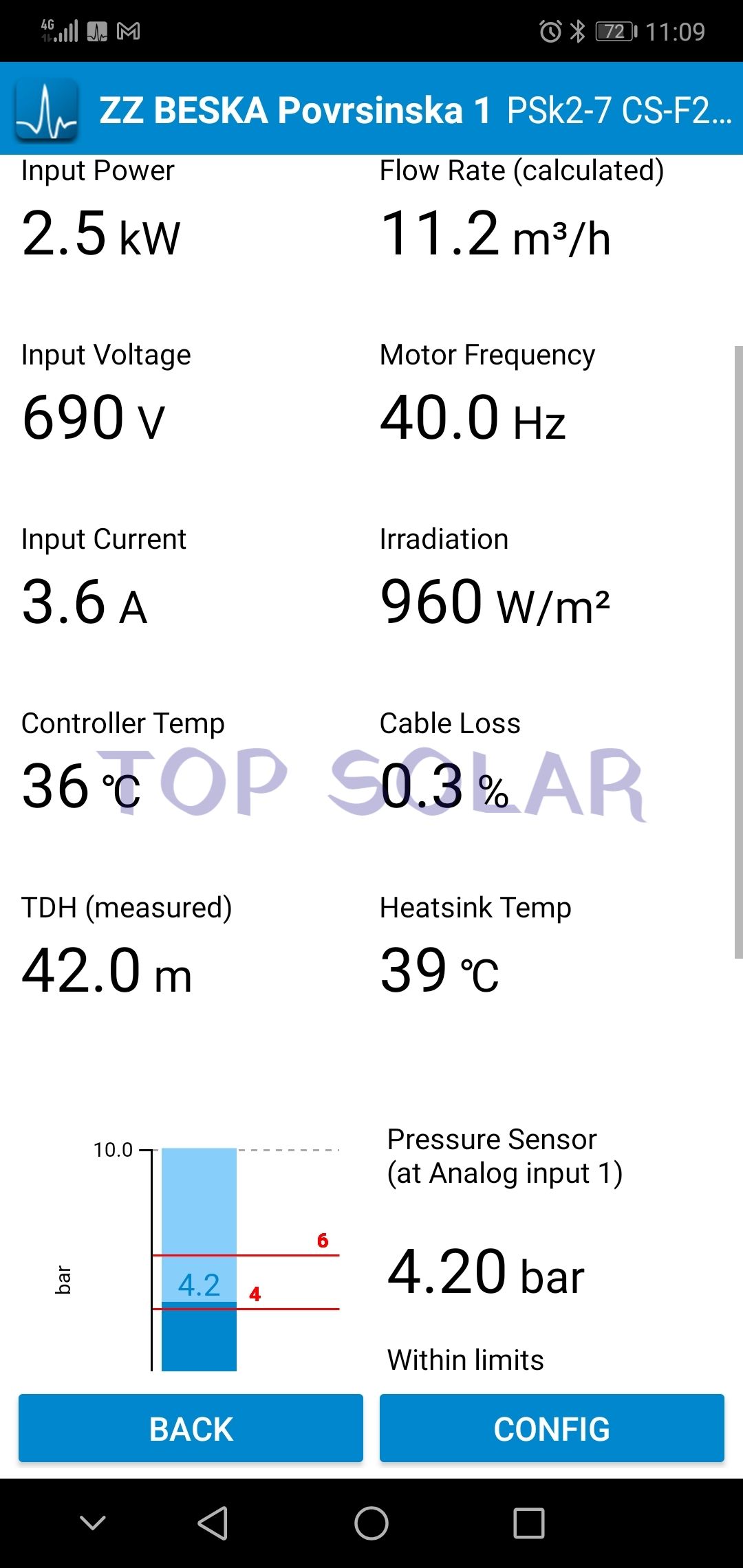

pump system: PSk2-7 CS-F20-5
flow rate: 105 m³/day
total dynamic head (TDH): 39 m
solar generator: 6.3 kWp

location

Beska
Serbia

installer

Top Solar

installed

August 2021

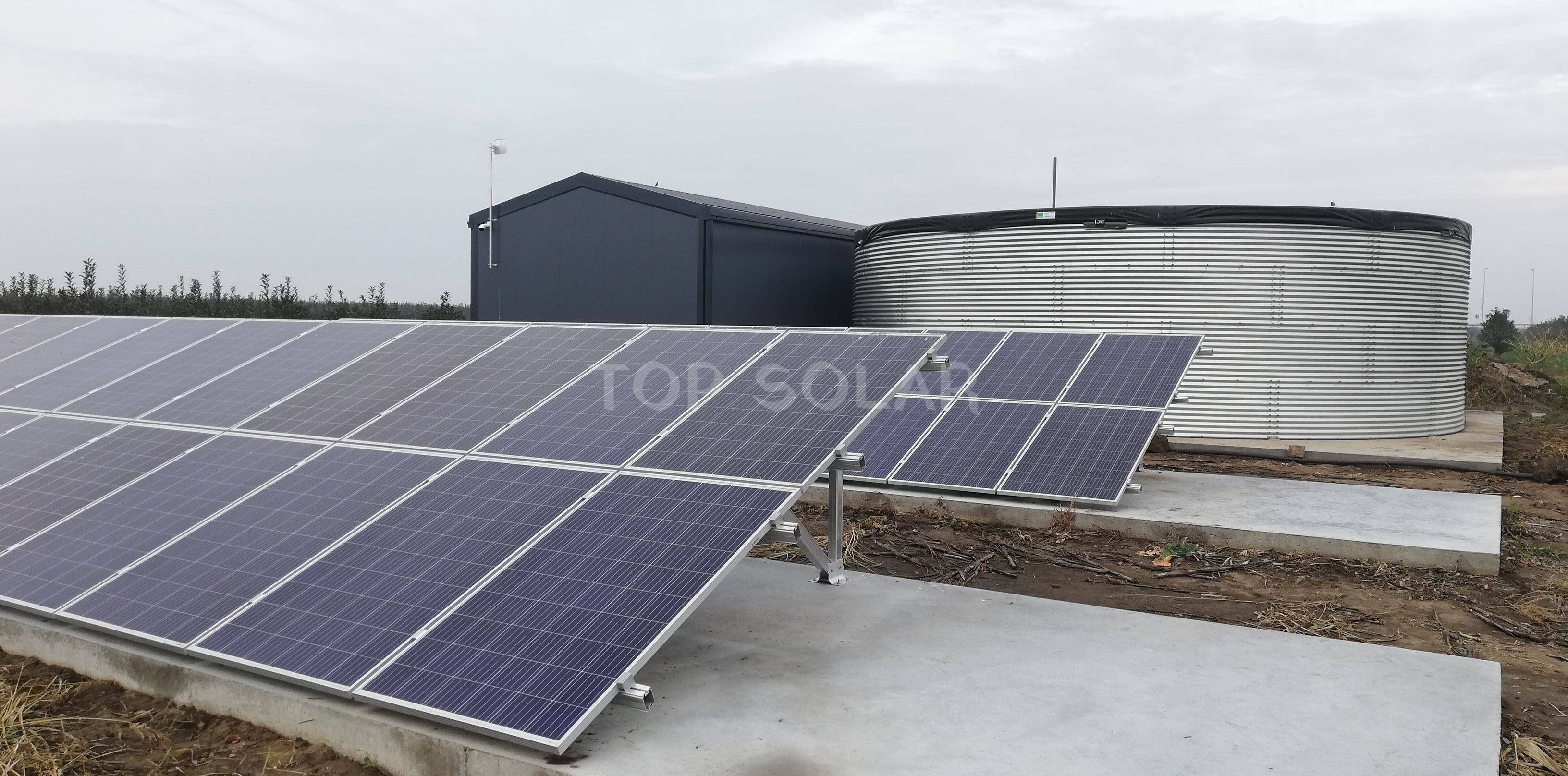

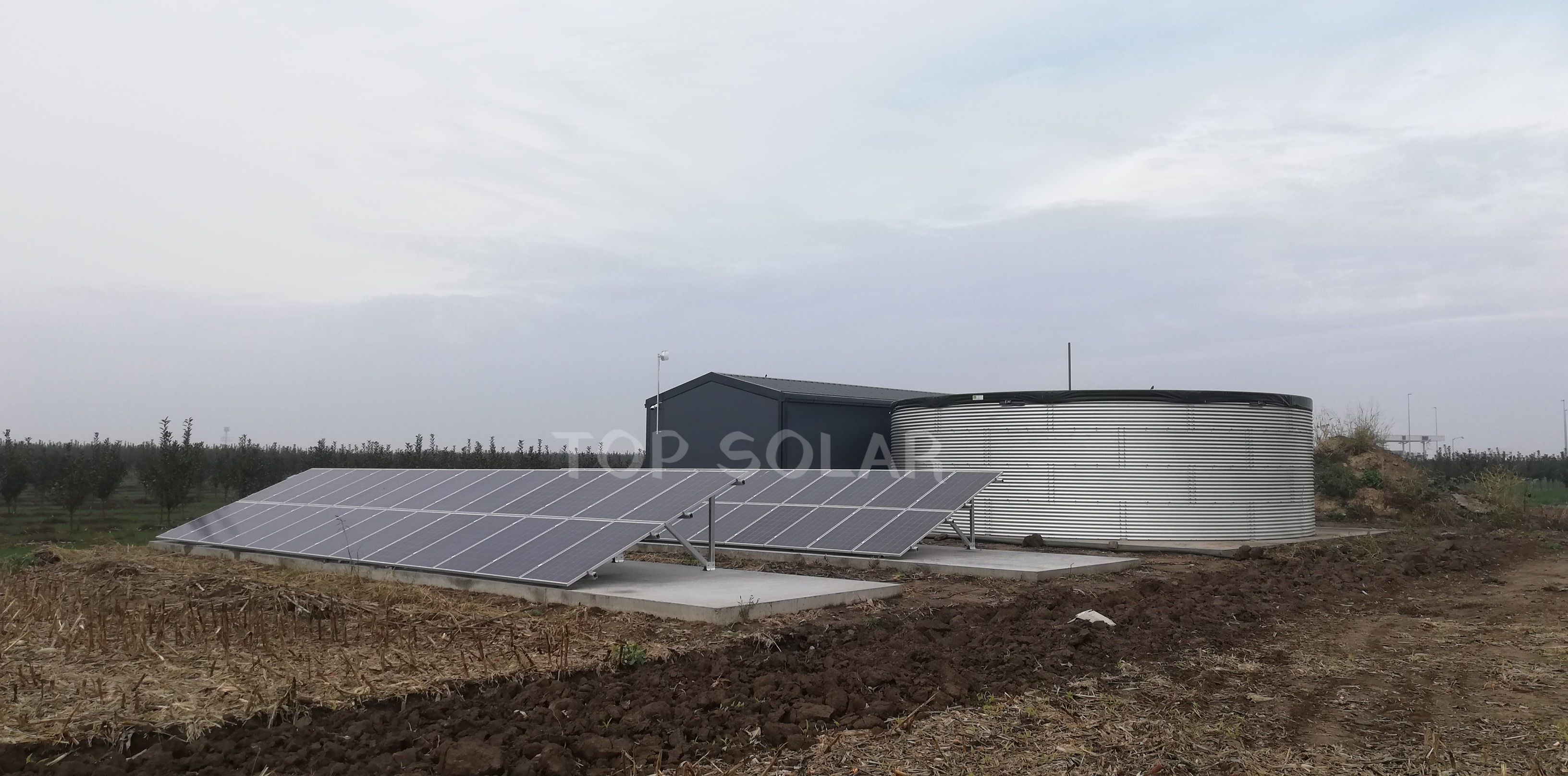

site description

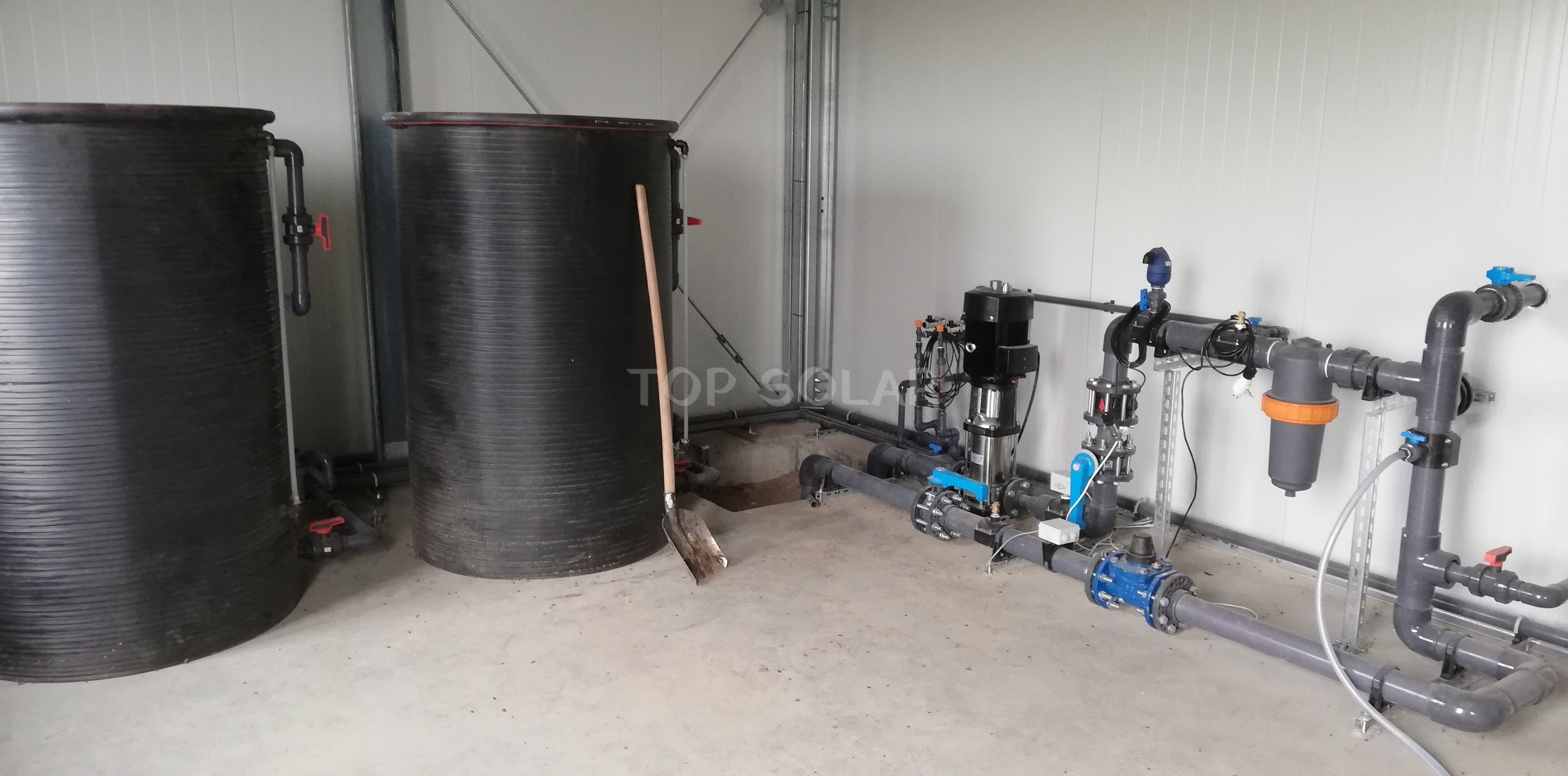

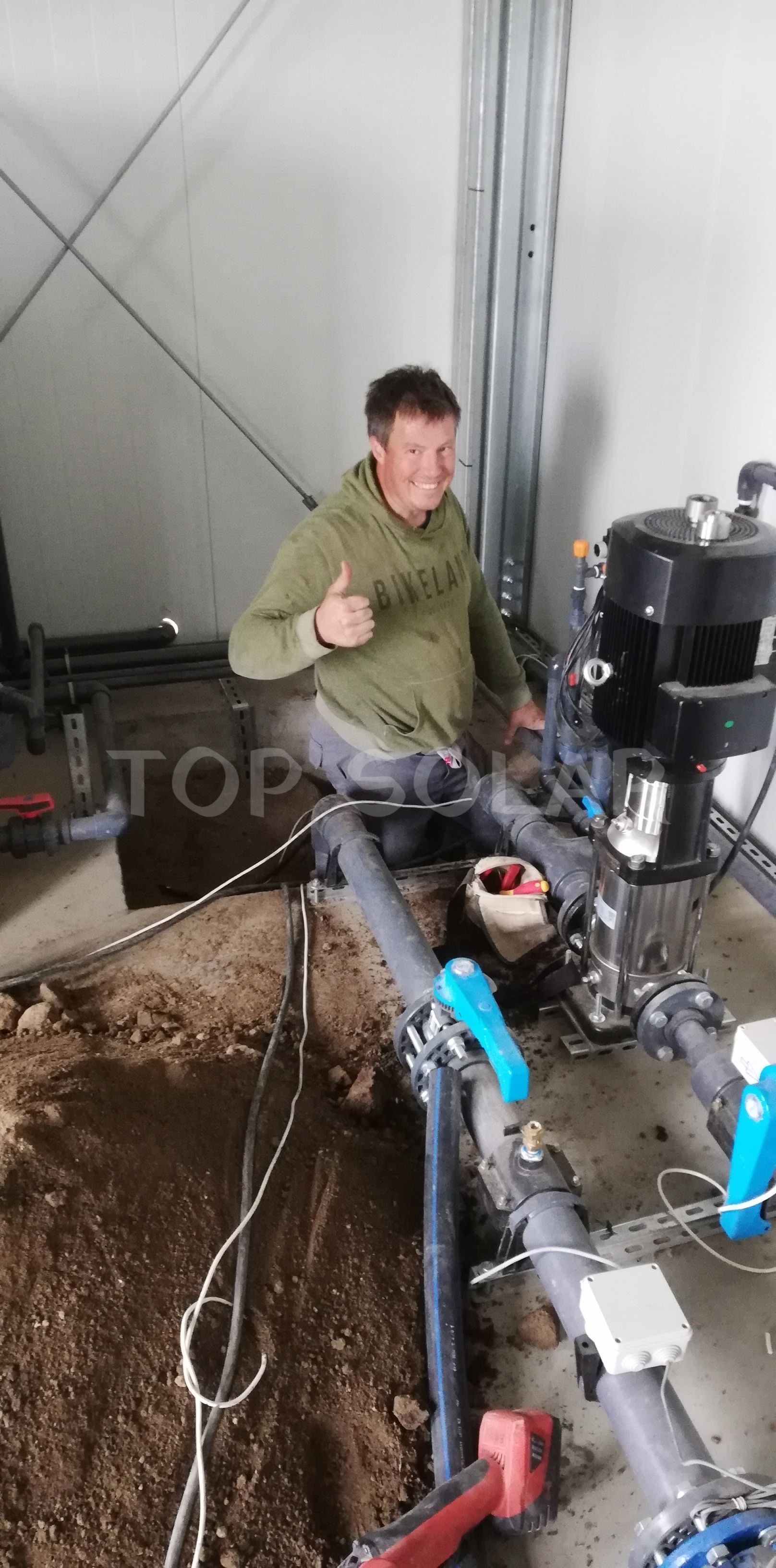

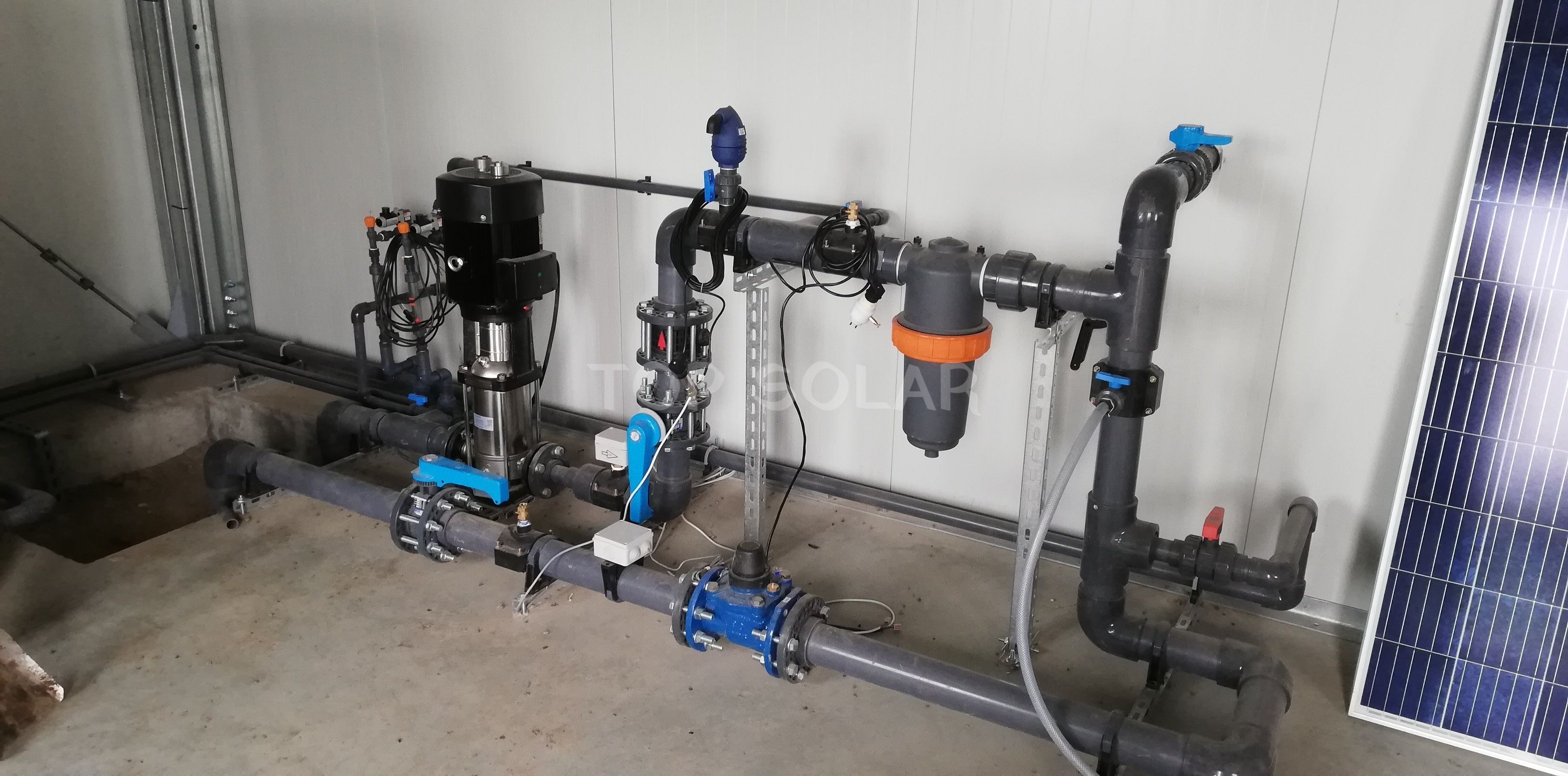

Double solar pump system - submersible pump fills the accumulation, the surface pump pumps into the drip irrigation system. The well has 2-3 l/s generocity, the drip needs more water. Double float with opposite settings, with pressure and dry runs protections.
