pump system: PS2-600 CS-17-1
flow rate: 50 m³/day
total dynamic head (TDH): 6 m
solar generator: 900 Wp
Castelldefels
Spain
Sol-Luz-Ion Energia Solar
October 2018

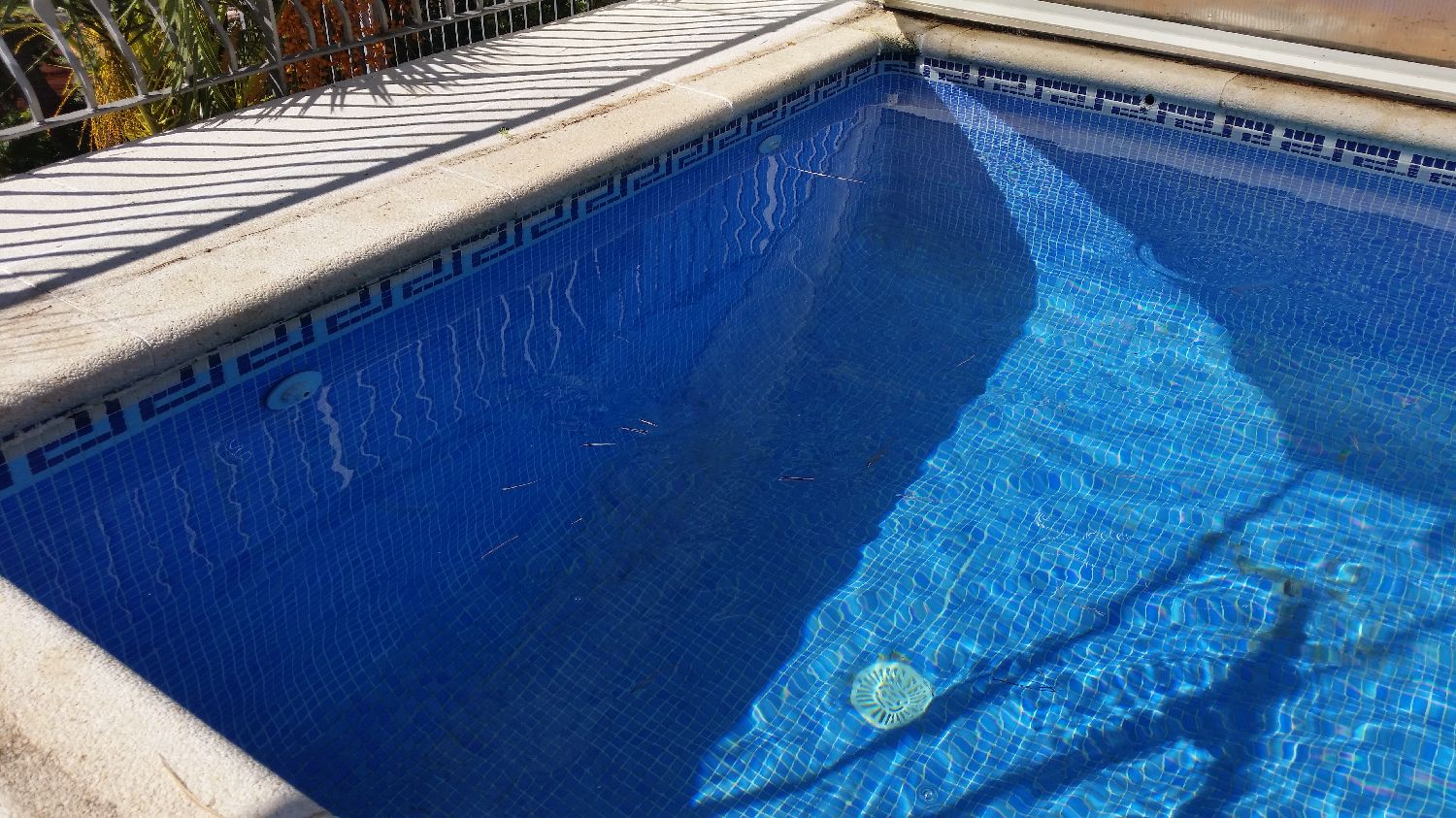

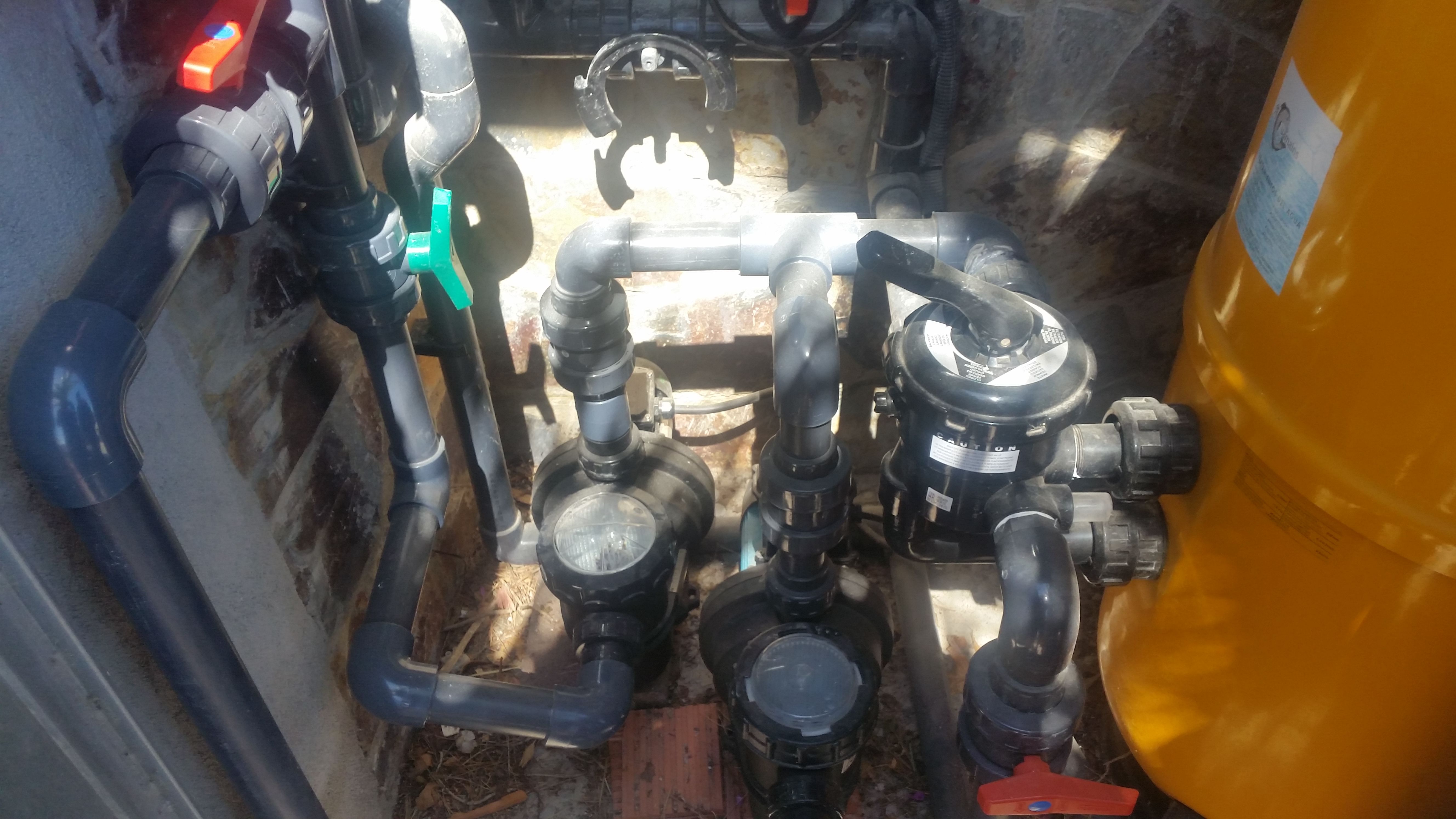

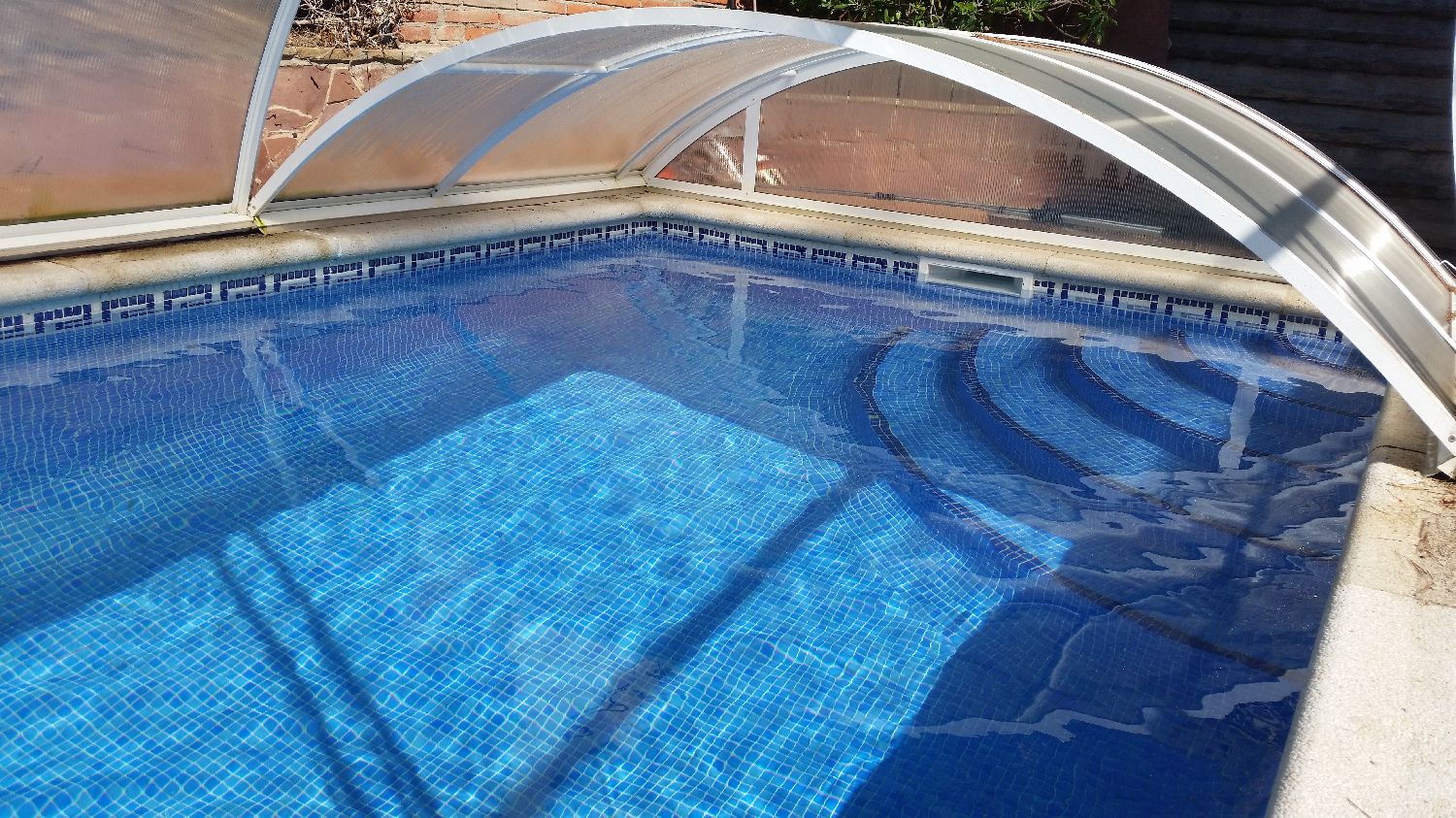

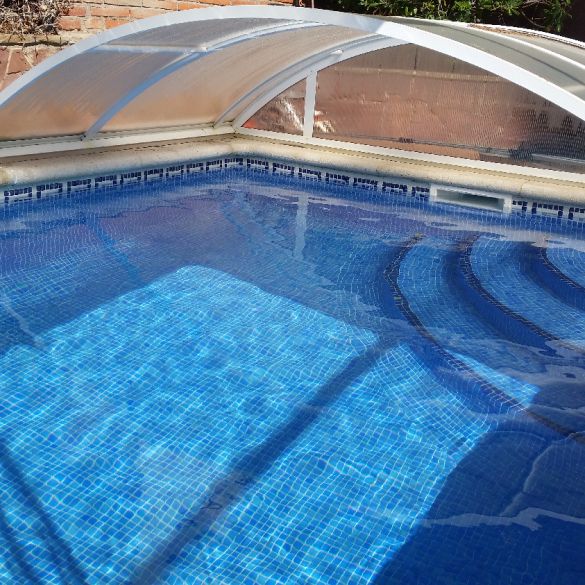

A small covered 25m³ swimming pool near Barcelona, a Lorentz Pump PS2-600 CS 17-1 in parallel to the existing 230V pump, changing automaticaly between them depending on the solar radiation. The pool is also used in winter, therefore we installed enogh solar power to get 50m³ even in December.

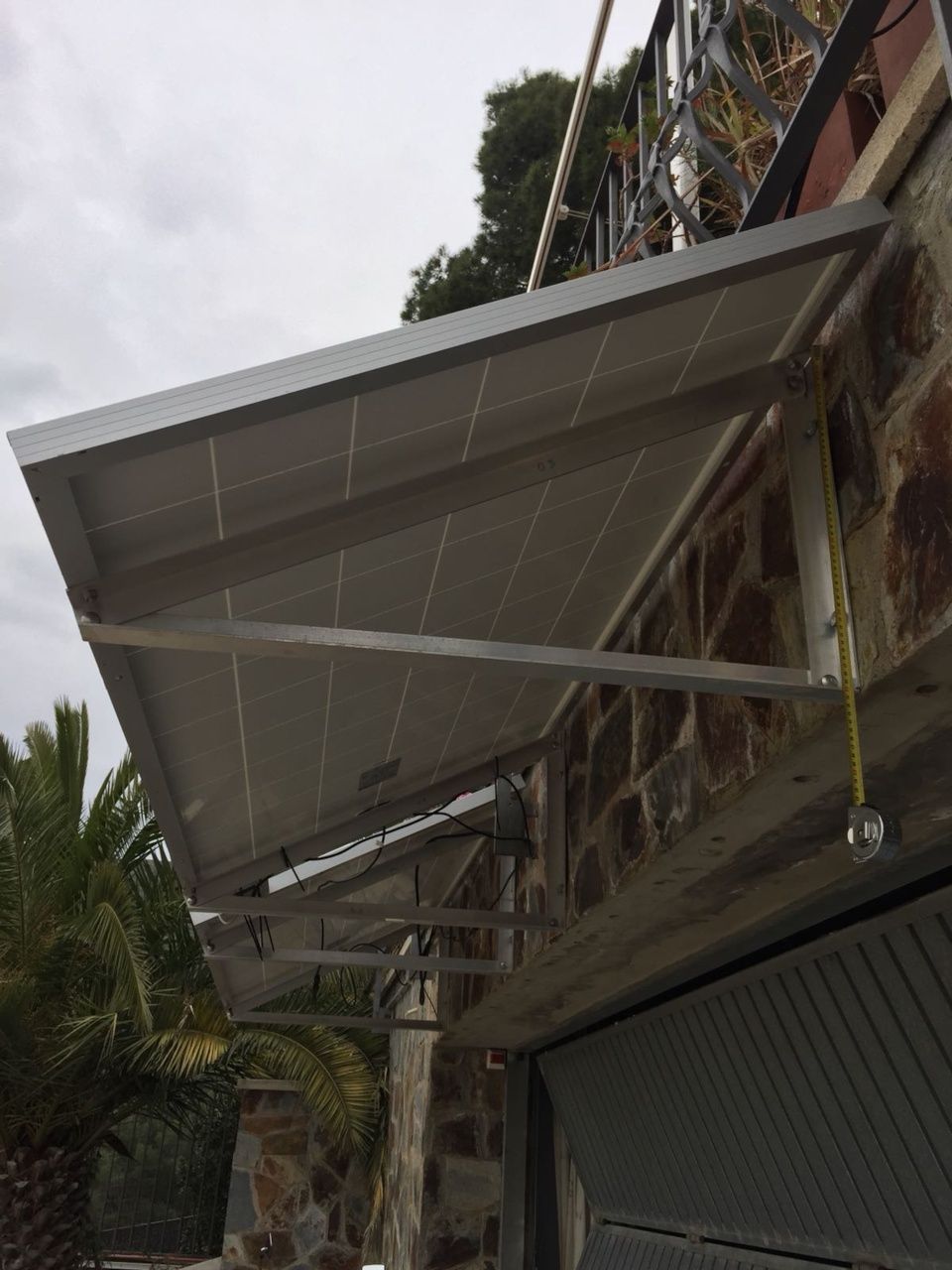

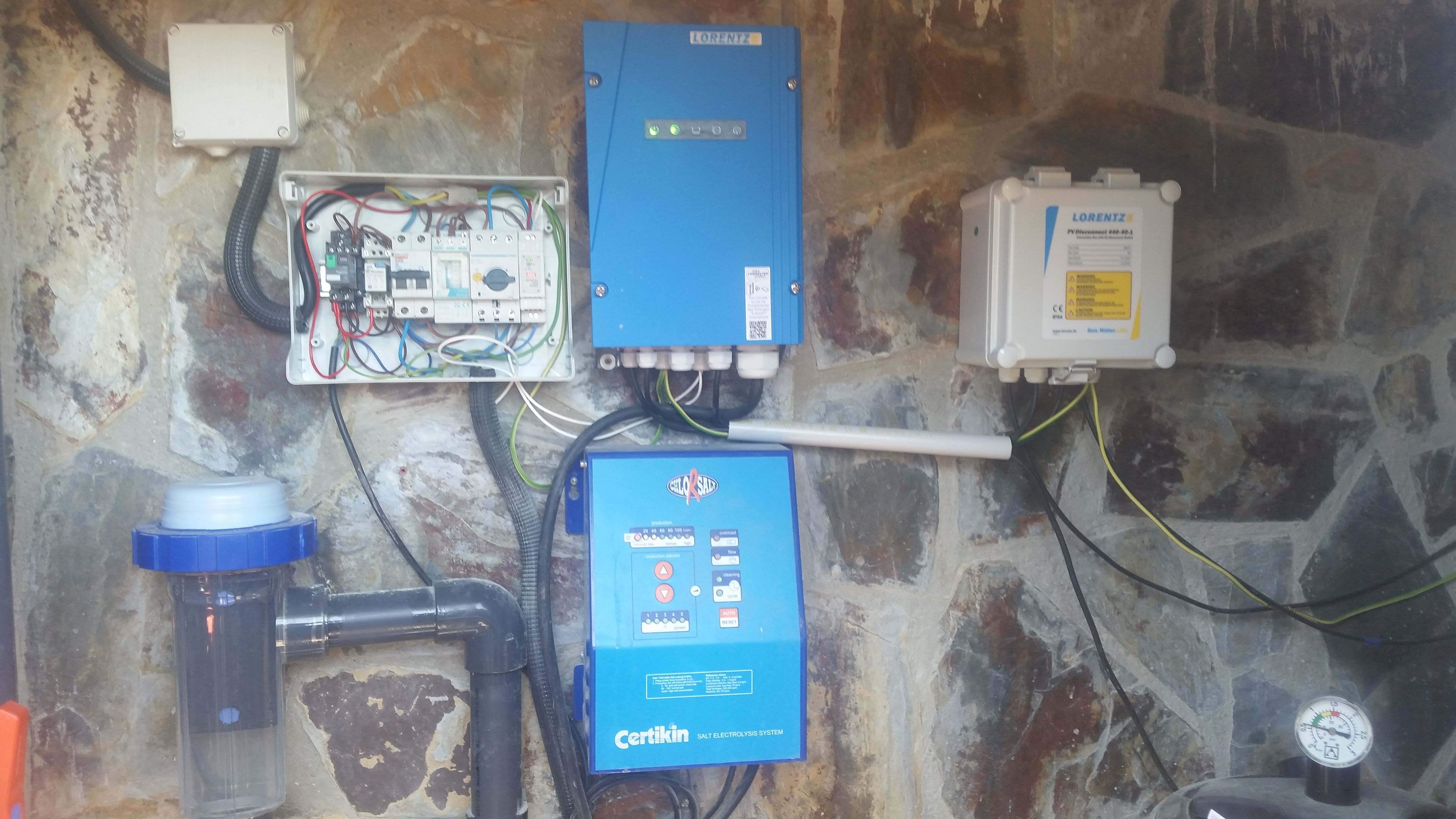

The picture of the controller and other units is made before finishing the installation, cables still not fixed on the wall. Three solar panels of 300W in series are fixed on the wall above the garage gate.
