pump system: PS2-200 HR-07
flow rate: 10 m³/day
total dynamic head (TDH): 15 m
solar generator: 600 Wp
Drummartin, Victoria 3570
Australia
Renewable Power Systems
January 2020

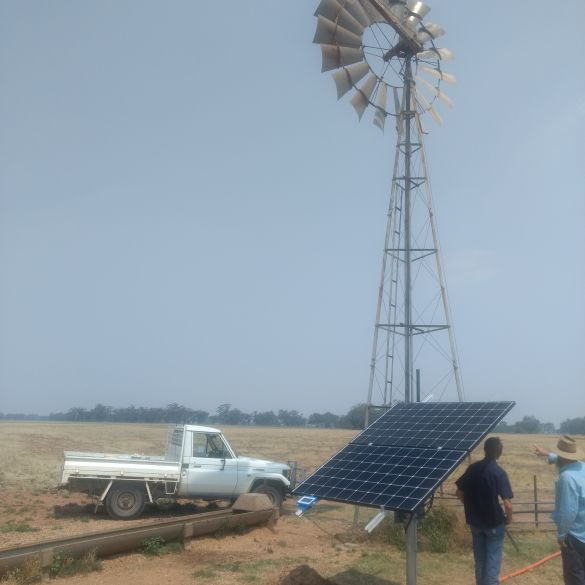

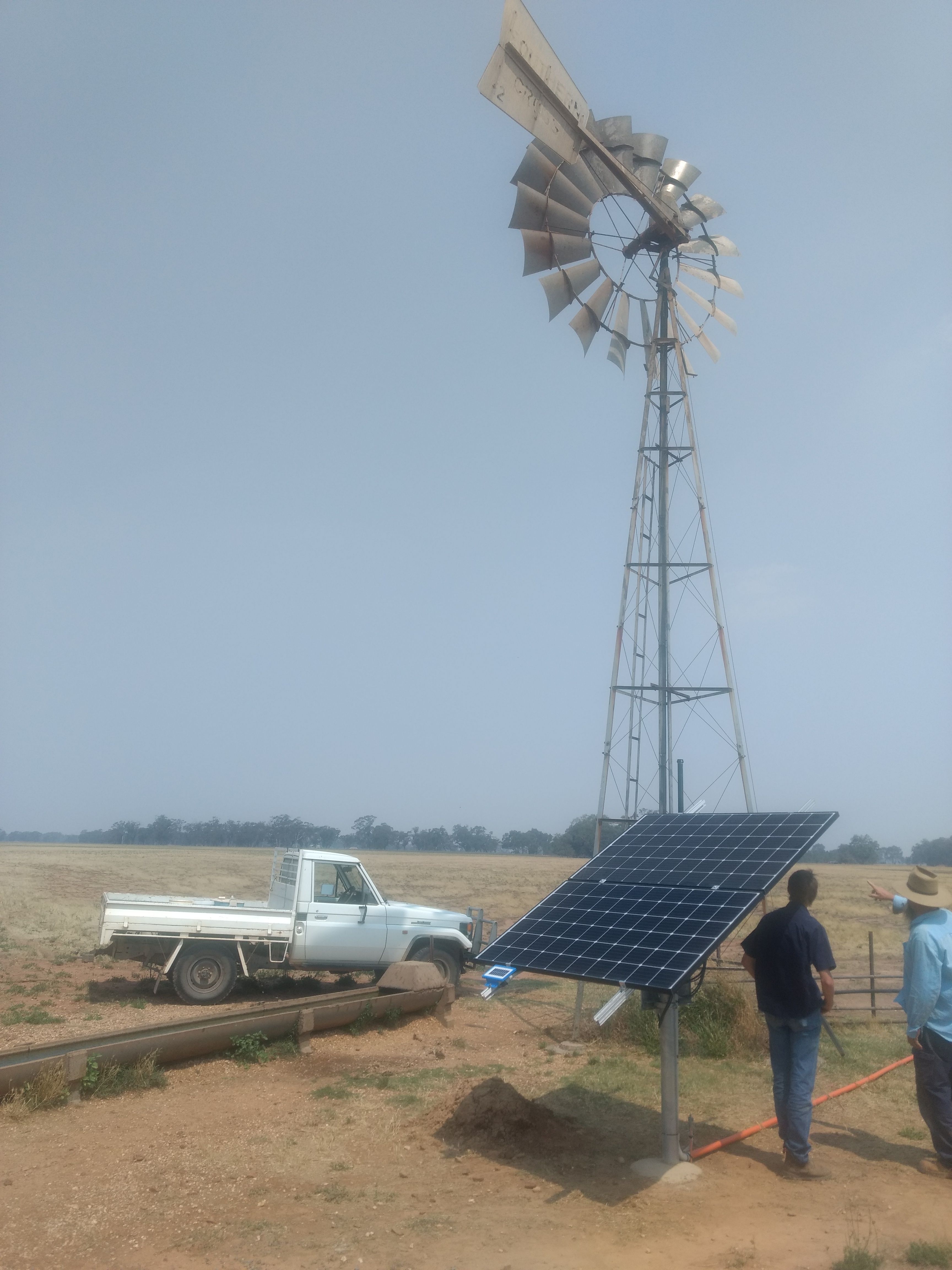

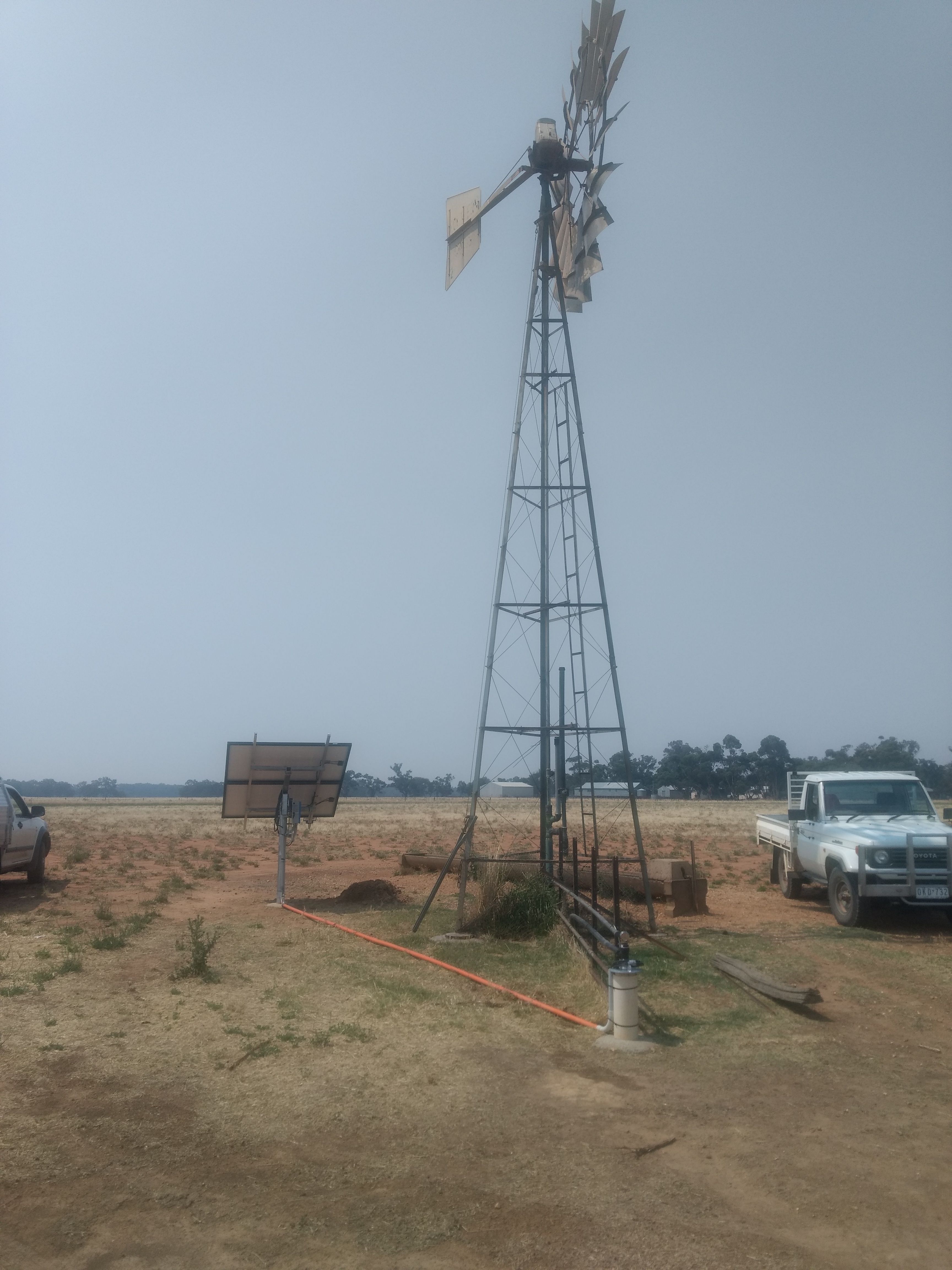

Lorentz PS2-200 HR-07 lifting water from a shallow bore and delivering it to a water tank, once the tank is full it overflows into an adjacent dam. The pump is powered by 0.6kW Jinko solar array made up of 2x 300Watt solar modules.
