pump system: PS2-1800 HR-07
flow rate: 10 m³/day
total dynamic head (TDH): 80 m
solar generator: 1.3 kWp
Glenhope, Victoria 3444
Australia
Renewable Power Systems
February 2020

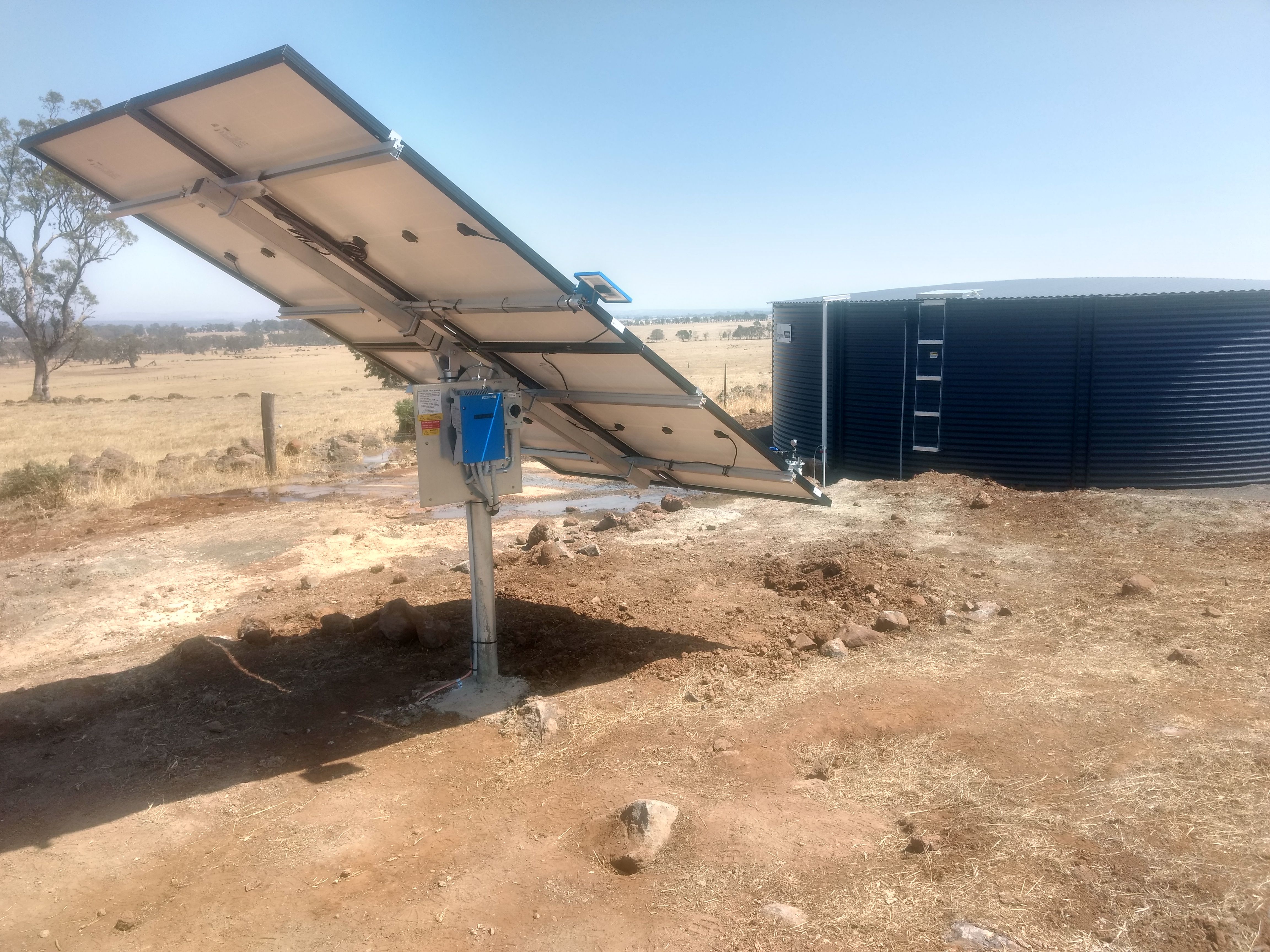

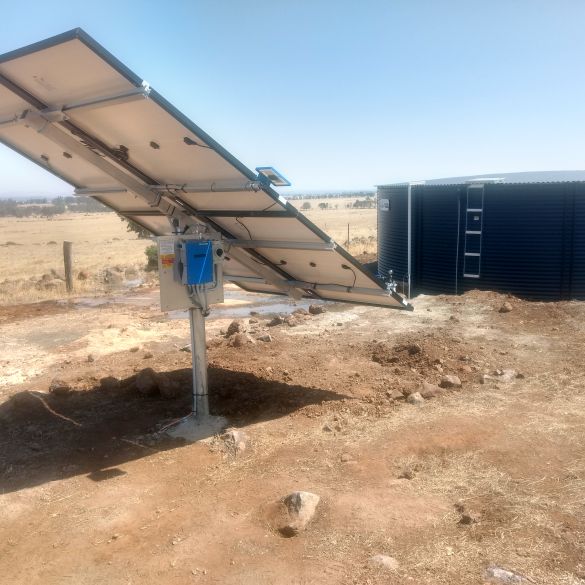

Lorentz PS2-1800 HR-07 installed at 78 meters in a 125mm bore, powered by 4x Trina 330watt solar modules. The pump system is designed to supply a daily average of 10,000 litres per day in summer, filling a large water tank from which the water is then gravity fed to stock troughs for sheep and beef cattle.
