pump system: PS2-4000 C-SJ17-4
flow rate: 86 m³/day
total dynamic head (TDH): 20 m

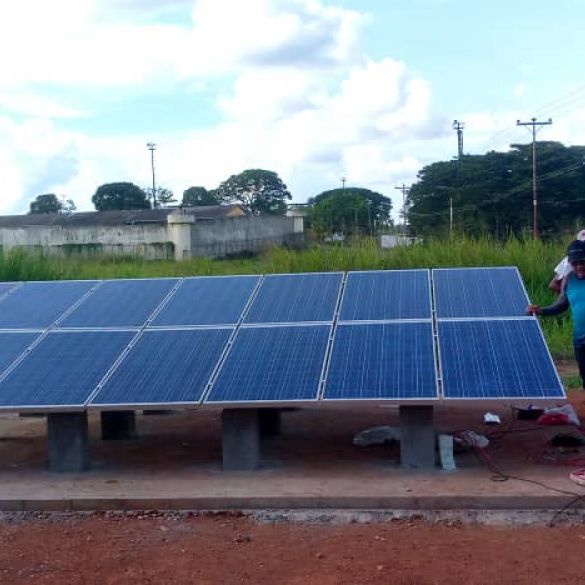

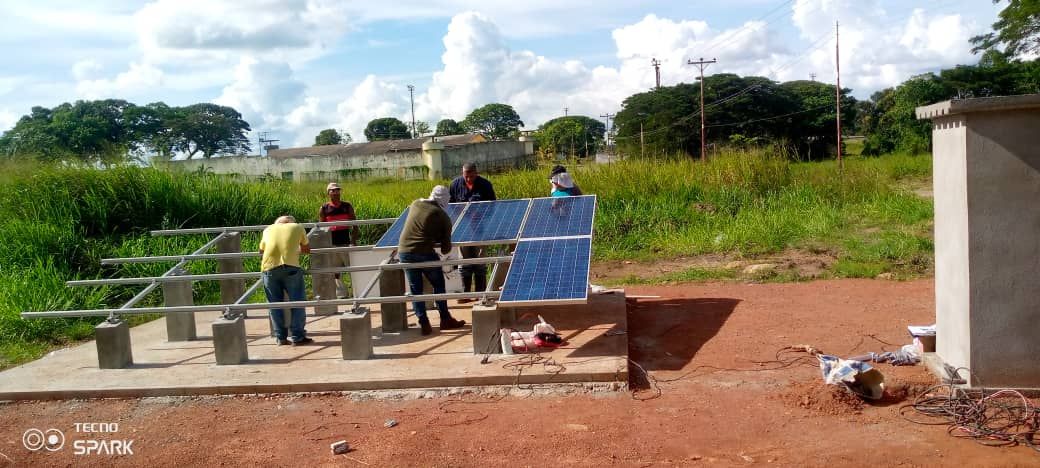

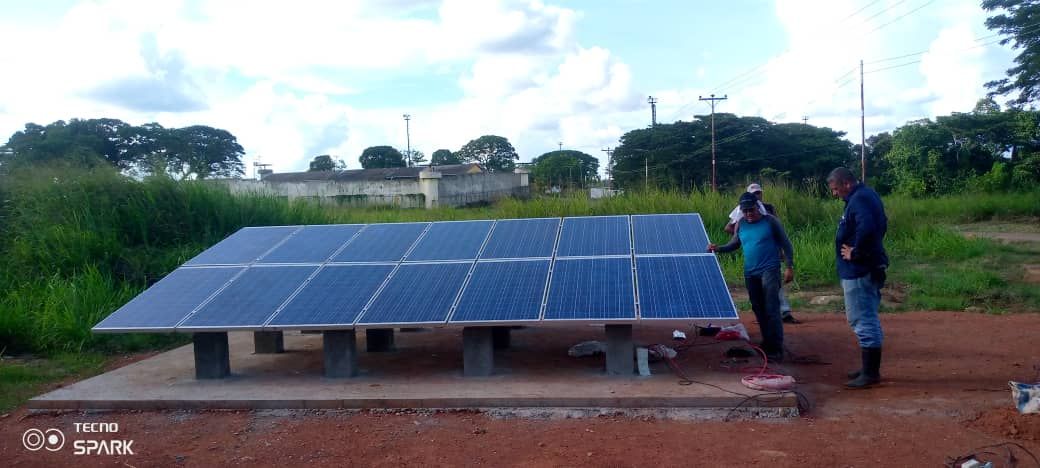

solar generator: 2.5 kWp
El Dorado
Venezuela
EL ARCA DE NOE
October 2022

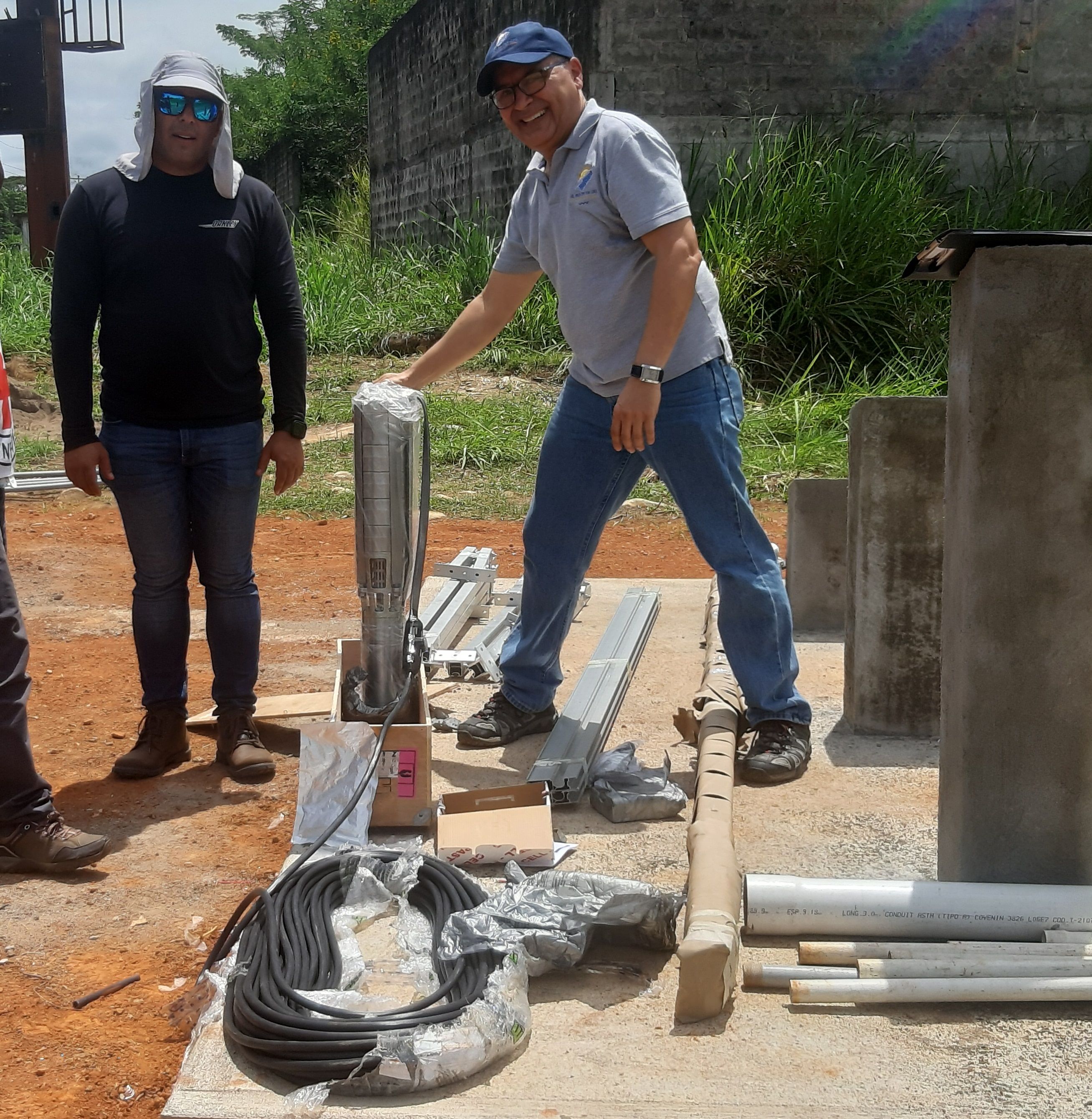

Drinking water supply for the inmate community (1200 people) of the El Dorado Prison. The International Committee of the Red Cross-ICRC requested advice for the design of a solar pumping system that allows to cover the requirement of 86M3 of water per day. After the exploratory work and drilling of the water well, which obtained the required flow, the design of the submersible pump was validated with the COMPASS tool. The installation is executed with all the technical and professional requirements by LORENTZ to achieve the highest level of quality and performance for many years of service of the solar pumping system.
