Managing sensor inputs and accessories with the S-Connect app

Sensor inputs on your LORENTZ S1-200 or S1-700 pump system can be easily managed using the S-Connect app.

To activate or deactivate a sensor input:

Open the "S-Connect app".

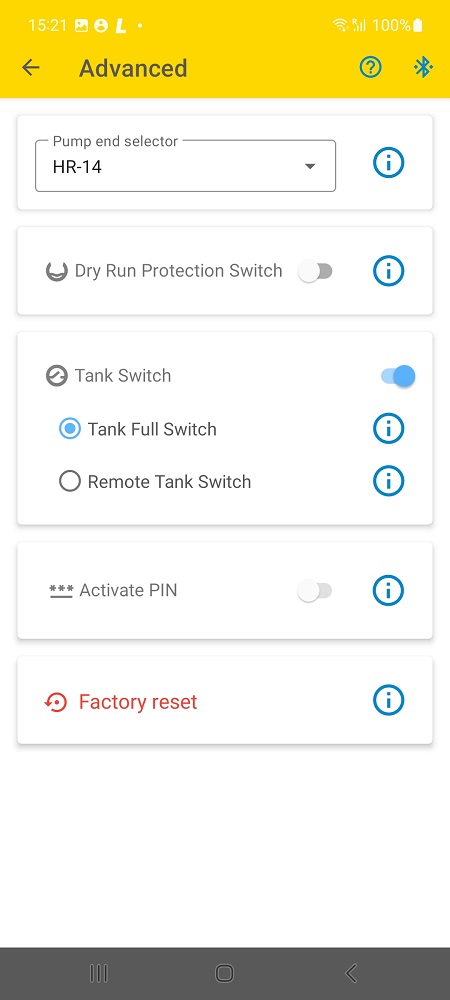

Go to "Settings" > "Advanced Settings".
Tap the switch next to the desired input to "enable" or "disable" it.

If the app is not used and inputs have been manually activated, jumper plugs (see picture below) need to be plugged into the sensor sockets.

Important: Jumper connectors cannot be used on the controller’s Tank Switch Input if the Remote Tank Switch is activated.

To purchase jumper plugs, please contact your local LORENTZ dealer.

Jumper plug

Further reading

Function and use of Dry Run Protection

Function and use of Tank Full Switch

Function and use of Remote Tank Switch
